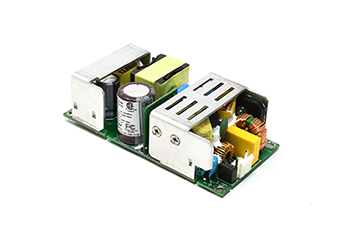

PPWA150B-13-2
U-Channel Power Supply 19V 150 Watt
Lifecycle:
Mature
Brand:
Power Partners
Series:
PPWA150B
Compact Size 2” x 4” x 1.02”
Wide-range Input 90-264 VAC
Level B Emissions
RoHS Compliant
U Channel and Open Frame Options
Built-in Active PFC
High Power Density 18.75W/in5
Specifications
| Output Power | 150W |
|---|---|
| Output Voltage 1 | 15V |
| Output Voltage 2 | - |
| Output Voltage 3 | - |
| Output Voltage 4 | - |
| Output Current 1 | 6.67A |
| Output 1 Max Current with CFM | 10A |
| CFM | 12A |
| Output 2 Max Current | - |
| Output 3 Max Current | - |
| Output 4 Max Current | - |
| Application | Industrial |
| Input Class | I |
| Number of Outputs | 1 |
| Temperature | 0°C to 70°C (Derate linearly from 150W at 50°C to 75W at 70°C with 12 CFM airflow. Derate linearly from 100W at 40°C to 50W at 60°C with convection cooling.)C |
| Dimensions | 43.8x101.6x29mm |
| Product Brand | Power Partners |
Resources & Technical Documents
- All (1)
- 3D Model (0)
- Application Note (0)
- Brochure (0)
- Compliance (0)
- End Of Life (0)
- Product Change Notification (0)
- Case Study (0)
- Technical Bulletin (0)
- Policy & Regulations (0)
- Terms & Conditions (0)
- White Paper (0)
- Datasheet (1)
| Datasheet | PPWA150B |
