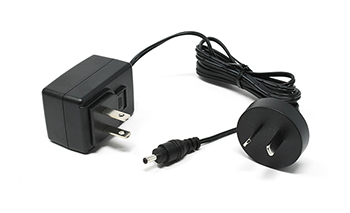

PEAMW12I-11-B1
Wall Mount Power Supply 9V 12 Watt
Lifecycle:
Mature
Brand:
Power Partners
Series:
PEAMW12I
IEC 60601-1-2 4th Edition EMC Compliant
Class II Double Insulated (2 MOPP Rated)
Meets Efficiency Level VI Requirements
Interchangeable Plugs for Worldwide Use
Optional USB (5V only) or Cable Output
Short Circuit Protection
Overload Protection
No Load Operation
Specifications
| Output Power | 12W |
|---|---|
| Ouput Voltage | 9V |
| Output Current | 4.0A |
| Blade Type | Interchangeable Blade |
| Output Connector | 2.1mm |
| Plug(s) Included | USA (Others available upon request) |
| Product Brand | Power Partners |
| Application | Medical |
| Class | II |
| No. of Outputs | 1 |
| Temperature | 0°C to +60°C (Derate output power linearly from 100% at 40°C to 50% at 60°C)C |
| Dimensions | 37x56x32mm |
