PEAMW20I-17-B1
Wall Mount Power Supply 36V 20 Watt
Lifecycle:
Mature
Brand:
Power Partners
Series:
PEAMW20I
Class II Double Insulated

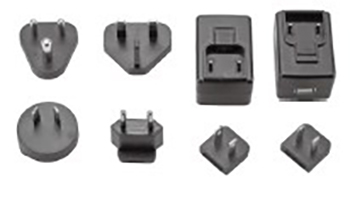

Interchangeable AC Plugs
Meets Efficiency Level VI requirements
<100mW No Load Power Consumption
Short Circuit Protection
Overload Protection
No Load Operation
MTBF>100,000 hours
Specifications
| Output Power | 20W |
|---|---|
| Ouput Voltage | 36V |
| Output Current | 0.6A |
| Blade Type | Interchangeable Blade |
| Output Connector | 2.1mm |
| Plug(s) Included | USA (Others available upon request) |
| Product Brand | Power Partners |
| Application | Medical |
| Class | II |
| No. of Outputs | 1 |
| Temperature | 0°C to +60°C with output power derating above 40°C at 2.5%/°CC |
| Dimensions | 39x57.2x34mm |
Resources & Technical Documents
- All (2)
- 3D Model (0)
- Brochure (0)
- Compliance (0)
- End Of Life (0)
- Product Change Notification (0)
- Case Study (0)
- Technical Bulletin (0)
- Policy & Regulations (0)
- Terms & Conditions (0)
- White Paper (0)
- Datasheet (1)
- Application Note (1)
| Datasheet | PEAMW20I | |
| Application Note | PEAW Interchangeable Plugs |
