PEAMW30I-14-B2

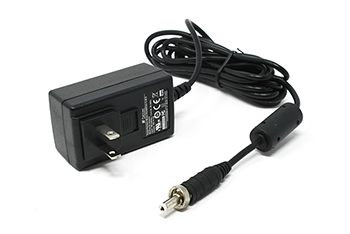

Wall Mount Power Supply 24V 30 Watt
Lifecycle:
Mature
Brand:
Power Partners
Series:
PEAMW30I
IEC 60601-1-2 4th Edition EMC Compliant
Class II Double Insulated (2 MOPP Rated)
Interchangeable AC Plugs
Meets Efficiency Level VI requirements
<100mW No Load Power Consumption
Short Circuit Protection
Overload Protection
Specifications
| Output Power | 30W |
|---|---|
| Ouput Voltage | 24V |
| Output Current | 1.3A |
| Blade Type | Interchangeable Blade |
| Output Connector | 2.5mm |
| Plug(s) Included | USA (Others available upon request) |
| Product Brand | Power Partners |
| Application | Medical |
| Class | II |
| No. of Outputs | 1 |
| Temperature | 0°C to 60°C (Derate output power linearly from 100% at 40°C to 50% at 60°C)C |
| Dimensions | 32.51x73.66x42.93mm |
Resources & Technical Documents
- All (2)
- 3D Model (0)
- Brochure (0)
- Compliance (0)
- End Of Life (0)
- Product Change Notification (0)
- Case Study (0)
- Technical Bulletin (0)
- Policy & Regulations (0)
- Terms & Conditions (0)
- White Paper (0)
- Datasheet (1)
- Application Note (1)
| Datasheet | PEAMW30I | |
| Application Note | PEAW Interchangeable Plugs |
