PEAMW6I-10-USB

Wall Mount Power Supply 5V 6 Watt

Lifecycle:

Mature

Brand:

Power Partners

Series:

PEAMW6I

checkmark

IEC 60601-1-2:2014 4th Edition EMC Compliant

checkmark

Class II Double Insulated (2 MOPP Rated)

checkmark

Meets Efficiency Level VI Requirements

checkmark

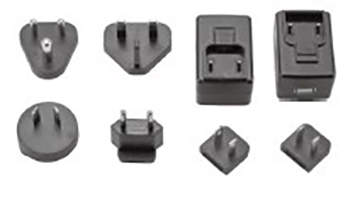

Interchangeable Plugs for Worldwide Use

checkmark

Optional USB (5V only) or Cable Output

checkmark

Short Circuit Protection

checkmark

Overload Protection

Specifications

Output Power 6W
Ouput Voltage 5V
Output Current 1.2A
Blade Type Interchangeable Blade
Output Connector USB
Plug(s) Included USA (Others available upon request)
Product Brand Power Partners
Application Medical
Class II
No. of Outputs 1
Temperature 0°C to 60°C (Derate output power linearly from 100% at 40°C to 50% at 60°C)C
Dimensions 37x56x32mm
