PEAMW6NA-10-USB

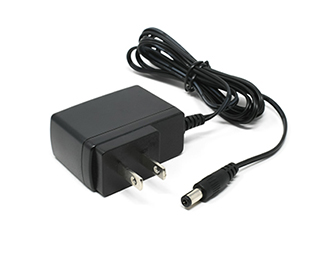

Wall Mount Power Supply 5V 6 Watt
Lifecycle:
Mature
Brand:
Power Partners
Series:
PEAMW6NA
IEC 60601-1-2 4th Edition EMC Compliant
Class II Double Insulated (2 MOPP Rated)
Meets Efficiency Level VI Requirements
Optional USB (5V only) or Cable Output
Short Circuit Protection
Overload Protection
No Load Operation
Specifications
| Output Power | 6W |
|---|---|
| Ouput Voltage | 5V |
| Output Current | 1.2A |
| Blade Type | Fixed Blade |
| Output Connector | USB |
| Plug(s) Included | USA |
| Product Brand | Power Partners |
| Application | Medical |
| Class | II |
| No. of Outputs | 1 |
| Temperature | 0°C to 60°C (Derate output power linearly from 100% at 40°C to 50% at 60°C)C |
| Dimensions | 41x54x24mm |
Resources & Technical Documents
- All (1)
- 3D Model (0)
- Application Note (0)
- Brochure (0)
- Compliance (0)
- End Of Life (0)
- Product Change Notification (0)
- Case Study (0)
- Technical Bulletin (0)
- Policy & Regulations (0)
- Terms & Conditions (0)
- White Paper (0)
- Datasheet (1)
| Datasheet | PEAMW6NA |
