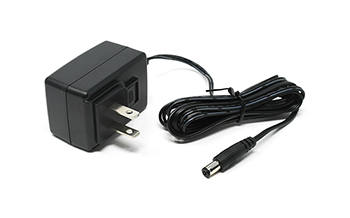

PEAW12I-11-B1
Wall Mount Power Supply 9V 11.97 Watt
Lifecycle:
Mature
Brand:
Power Partners
Series:
PEAW12I
Class II Configuration
Efficiency Level VI
Interchangeable Plugs for Worldwide Use
Optional USB (5V only) or Cable Output
Short Circuit Protection
Overload Protection
No Load Operation
Specifications
| Output Power | 12W |
|---|---|
| Ouput Voltage | 9V |
| Output Current | 1.3A |
| Blade Type | Interchangeable Blade |
| Output Connector | 2.1mm |
| Plug(s) Included | USA |
| Product Brand | Power Partners |
| Application | Industrial |
| Class | II |
| No. of Outputs | - |
| Temperature | 0°C to 60°C (Derate output power linearly from 100% at 40°C to 50% at 60°C)C |
| Dimensions | 34x56x32mm |
