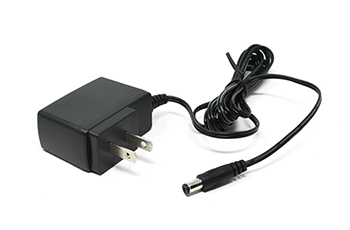

PEAW12NA-14-B1

Wall Mount Power Supply 24V 12 Watt

Lifecycle:

Mature

Brand:

Power Partners

Series:

PEAW12NA

checkmark

Class II Configuration

checkmark

Efficiency Level VI

checkmark

Optional USB (5V only) or Cable Output

checkmark

Short Circuit Protection

checkmark

Overload Protection

checkmark

No Load Operation

Specifications

Output Power 12W
Ouput Voltage 24V
Output Current 0.5A
Blade Type Fixed Blade
Output Connector 2.1mm
Plug(s) Included USA
Product Brand Power Partners
Application Industrial
Class II
No. of Outputs 1
Temperature 0°C to 60°C (Derate output power linearly from 100% at 40°C to 50% at 60°C)C
Dimensions 41x54x24mm

Resources & Technical Documents

  • All (1)
  • 3D Model (0)
  • Application Note (0)
  • Brochure (0)
  • Compliance (0)
  • End Of Life (0)
  • Product Change Notification (0)
  • Case Study (0)
  • Technical Bulletin (0)
  • Policy & Regulations (0)
  • Terms & Conditions (0)
  • White Paper (0)
  • Datasheet (1)
Datasheet PEAW12NA
