PEAW20NA-12-B1

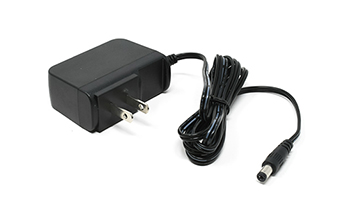

Wall Mount Power Supply 12V 20 Watt
Lifecycle:
Mature
Brand:
Power Partners
Series:
PEAW20NA
Class II Configuration
Efficiency Level VI
Short Circuit Protection
Overload Protection
Overvoltage Protection
No Load Operation
Specifications
| Output Power | 20W |
|---|---|
| Ouput Voltage | 12V |
| Output Current | 1.7A |
| Blade Type | Fixed Blade |
| Output Connector | 2.1mm |
| Plug(s) Included | USA |
| Product Brand | Power Partners |
| Application | Industrial |
| Class | II |
| No. of Outputs | 1 |
| Temperature | 0°C to 60°C (Derate output power linearly from 100% at 40°C to 50% at 60°C)C |
| Dimensions | 45.5x66.5x26mm |
Resources & Technical Documents
- All (1)
- 3D Model (0)
- Application Note (0)
- Brochure (0)
- Compliance (0)
- End Of Life (0)
- Product Change Notification (0)
- Case Study (0)
- Technical Bulletin (0)
- Policy & Regulations (0)
- Terms & Conditions (0)
- White Paper (0)
- Datasheet (1)
| Datasheet | PEAW20NA |
