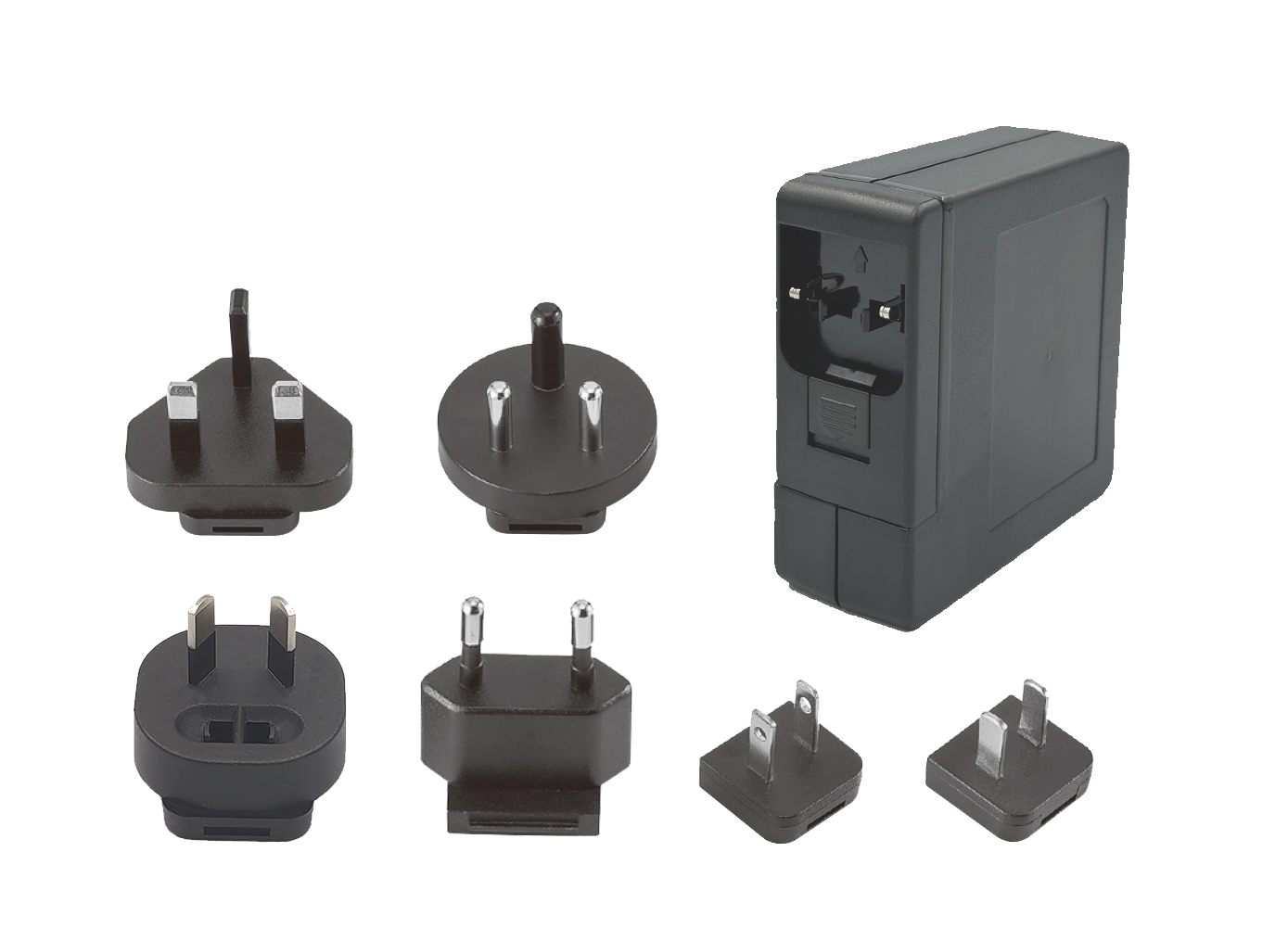

TEAMW65I-17-B2
Wall Mount Power Supply 36V 65 Watt
Lifecycle:
Mature
Brand:
Power Partners
Series:
TEAMW65I
Class II Double Insulated
Interchangeable AC Plugs
Meets Efficiency Level VI requirements
<100mW No Load Power Consumption
Short Circuit Protection
Overload Protection
No Load Operation
MTBF>100,000 hours
Specifications
| Output Power | 65W |
|---|---|
| Ouput Voltage | 36V |
| Output Current | 1.8A |
| Blade Type | Interchangeable Blade |
| Output Connector | 2.5mm |
| Plug(s) Included | USA (Others available upon request) |
| Product Brand | Power Partners |
| Application | Medical |
| Class | II |
| No. of Outputs | 1 |
| Temperature | -20℃ to 60℃ (Derate from 100% at +40℃ linearly to 50% at +60℃)C |
| Dimensions | 75x75x30mm |
