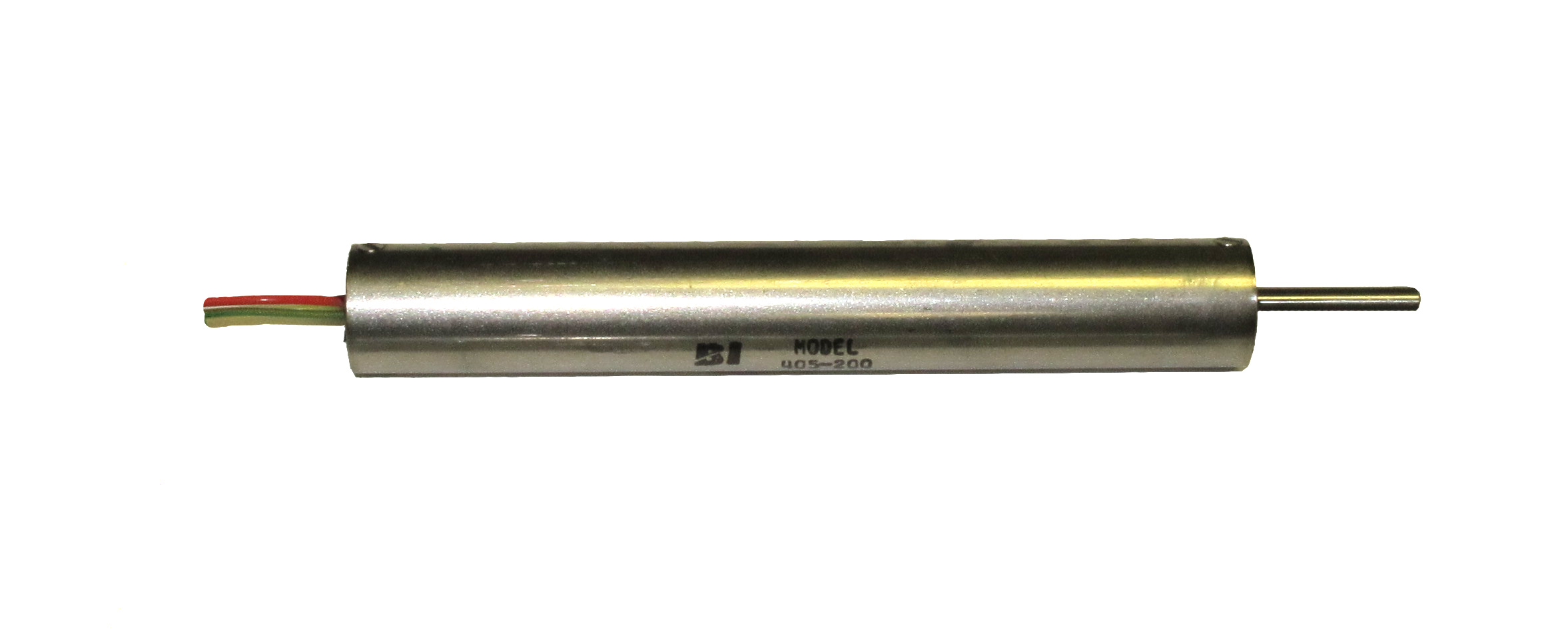

405
Linear Pot
Lifecycle:
Active (Mature)
Brand:
BI Technologies
Series:
405
Linear actuation
Low cost
Conductive plastic
Specifications
| Series | 405 |
|---|---|
| Type of Potentiometer | Linear displacement sensor |
| Element Material | Conductive plastic |
| Example MPN | 405200R10KT10L1.02G |
| Number of Gangs | 1 to 2 |
| Adjustment Orientation | - |
| Size (dia. / length) | 12.7mm |
|---|---|
| Number of Turns | 1 |
| Cycle Life, Min | 5,000,000 |
| Total Rotational Travel | - |
| Rotational Torque | - |
| IP Rating | - |
| Resistance min | 1kΩ |
|---|---|
| Resistance max | 900kΩ |
| Standard Resistance Tol | 20% |
| Power Rating | 1.5W |
| Standard Linearity | 1 to 1.5% |
| Operating Temperature | - |
| Electrical Angle | - |
| Maximum Operating Voltage | - |
| Lifecycle | Active (Mature) |
|---|---|
| EOL Estimate | No EOL planned |
| Latest PCN Date | No PCNs |
| Alternative Part Number | - |
