Lifecycle:
Obsolete
Brand:
Welwyn
Series:

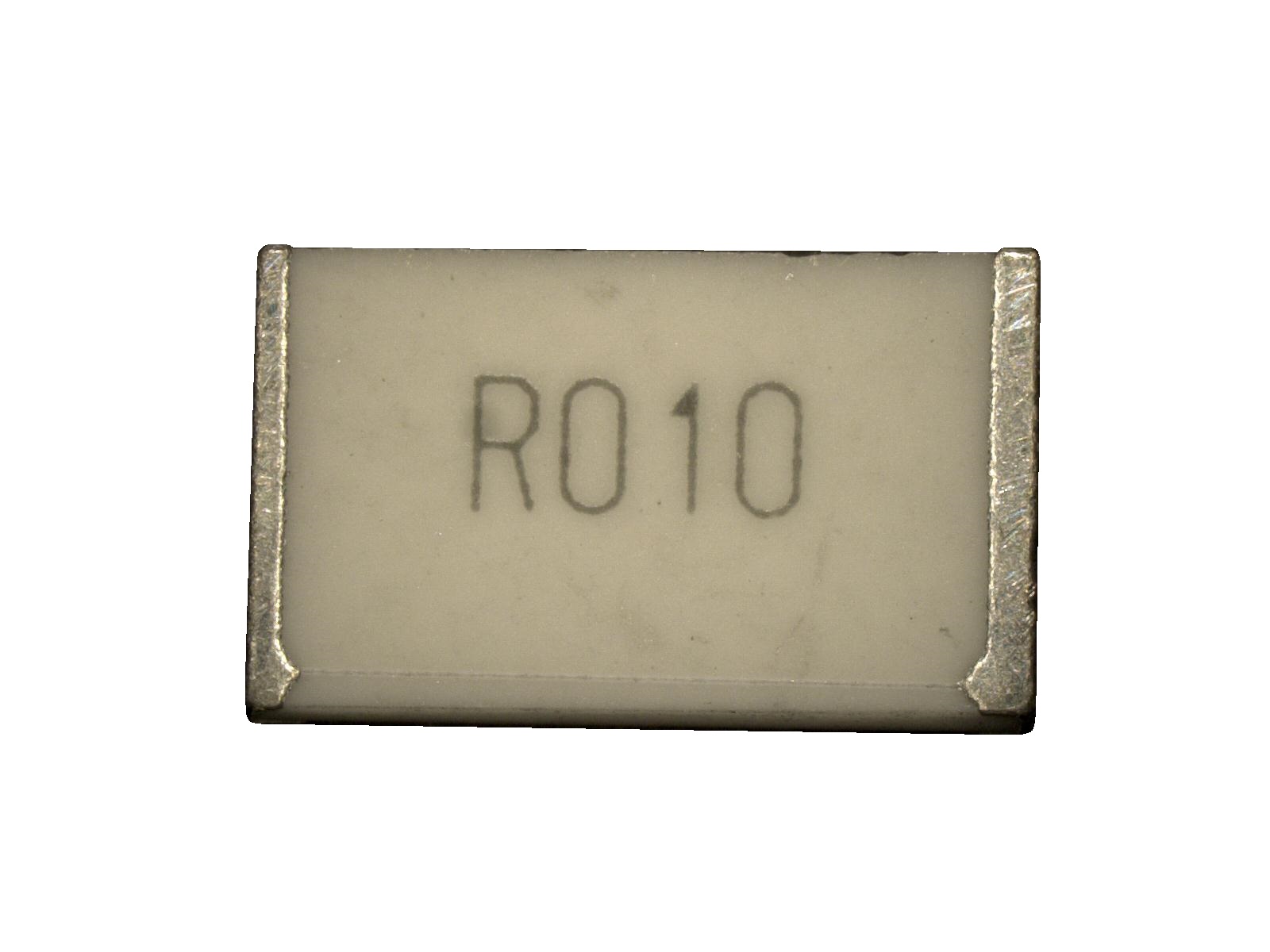

MFC2817
| Series | MFC2817 |
|---|---|
| Application | Current sense |
| Mounting | SMD - solder |
| Package | Chip 2817 |
| Technology | Metal foil |
| Approval | None |
| Example MPN | MFC2817-R005FT1 |
| Termination Options | Pb-free |
| Power | 5W |
|---|---|
| Rated Ambient Temperature | 70°C |
| De-rate to 0W Ambient Temperature | 155°C |
| Max Ambient Temperature | 155°C |
| LEV | - |
| Resistance min | 3mΩ |
| Resistance max | 0.15Ω |
| Critical Resistance (where applying LEV dissipates Pr) | - |
| Best Tolerance | 1% |
| Best TCR | 30ppm/°C |
| Isolation Voltage of Insulation | - |
| RoHS Compliant (if Pb-free) | - |
|---|---|
| RoHS Exemption | - |
| China RoHS (if Pb-free) | - |
| REACH Status (if Pb-free) | - |
| CMRT Conflict Mineral Status | - |
| EMRT Extended Mineral Status | - |
| Termination Finish (if Pb-free) | e3 - Sn matt plated |
| Termination Finish (if Pb-bearing) | Not available |
| How to Specify Pb-Free | All PNs are Pb-free |
| ECCN | EAR99 |
| Packing | Tape & reel |
|---|---|
| Quantity | 1000 |
| Nett Weight Each | - |
| Reflow Process | J-STD-020E |
| MSL | 1 |
| Wave Process | Compatible, 260+-5 deg. C, 1 or 2 x 5+-1 seconds contact time |
| Shelf-life | None defined, but solderability test prior to use is recommended after two years from date of manufacture |
| Launch Date | Aug 2017 |
|---|---|
| Lifecycle | Obsolete |
| EOL Date / YTEOL Estimate | EOL in Mar 2021 |
| Latest PCN Date | 11 Jan 21 |
| Alternative Part Number | - |
| Datasheet | MFC2817 | |
| Application Note | TN001 Advice on Storage Conditions for Fixed Resistors | |
| Application Note | TN002 Instant Access to RoHS REACH Conflict Mineral and other Compliance Data Online | |
| Application Note | TN003 Methods for Coding Resistor Values in Part Numbers | |
| Application Note | TN005 EIA Standard Values for Resistors | |
| Application Note | TN007 Instant Access to Life Cycle and Obsolete Product Data Online | |
| Product Change Notification | PCNs for MFC2817 |
