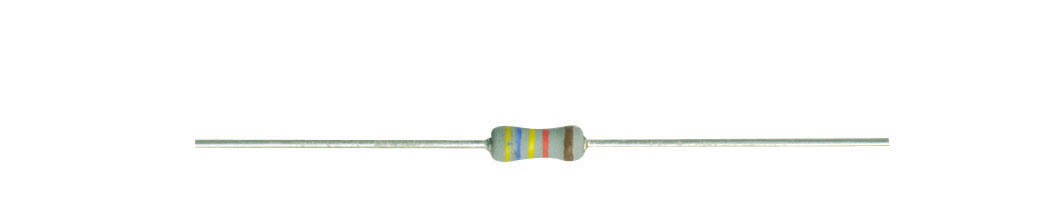

| Series | MH |
|---|---|
| Application | High value / voltage |
| Mounting | Through hole |
| Package | Axial |
| Technology | Metal film |
| Approval | None |
| Example MPN | MH37-4M7FI |
| Termination Options |
|
| Power | 0.5W |
|---|---|
| Rated Ambient Temperature | 70°C |
| De-rate to 0W Ambient Temperature | 155°C |
| Max Ambient Temperature | 155°C |
| LEV | 3.5kV |
| Resistance min | 100kΩ |
| Resistance max | 3MΩ |
| Critical Resistance (where applying LEV dissipates Pr) | - |
| Best Tolerance | 1% |
| Best TCR | 100ppm/°C |
| Isolation Voltage of Insulation | 700V |
| RoHS Compliant (if Pb-free) | - |
|---|---|
| RoHS Exemption | - |
| China RoHS (if Pb-free) | - |
| REACH Status (if Pb-free) | - |
| CMRT Conflict Mineral Status | - |
| EMRT Extended Mineral Status | - |
| Termination Finish (if Pb-free) | e3 - Sn hot dipped |
| Termination Finish (if Pb-bearing) | 95/5 |
| How to Specify Pb-Free | Part number suffix is I and not PB |
| ECCN | EAR99 |
| Packing | Tape & ammo pack |
|---|---|
| Quantity | 2500 |
| Nett Weight Each | - |
| Reflow Process | Not applicable |
| MSL | Not applicable |
| Wave Process | Compatible, 260+-5 deg. C, 1 or 2 x 5+-1 seconds contact time |
| Shelf-life | None defined, but solderability test prior to use is recommended after two years from date of manufacture |
| Launch Date | Pre-2000 |
|---|---|
| Lifecycle | Obsolete |
| EOL Date / YTEOL Estimate | EOL in Apr 2019 |
| Latest PCN Date | 23 Apr 19 |
| Alternative Part Number | VRW37 |
