Lifecycle:
Active (Mature)
Brand:
IRC
Series:
OARS
| Series | OARS |
|---|---|
| Application | Zero ohm jumper |
| Mounting | SMD - solder |
| Package | SMD formed metal terminal |
| Technology | Metal element |
| Approval | None |

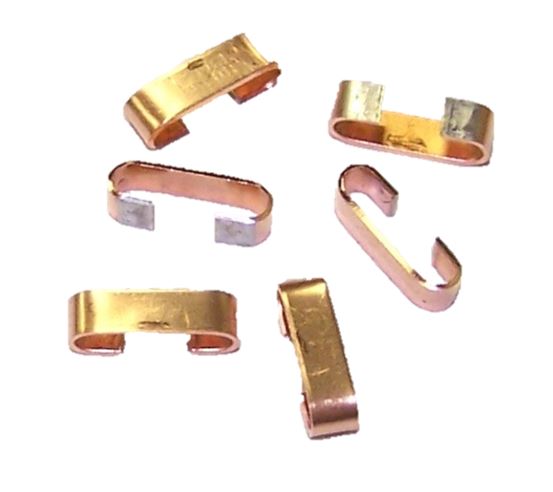

| Example MPN | OARS-1ZLF (Legacy: OARS-1Z) |
| Termination Options | Pb-free |
| Power | - |
|---|---|
| Rated Ambient Temperature | 70°C |
| De-rate to 0W Ambient Temperature | 160°C |
| Max Ambient Temperature | 160°C |
| LEV | - |
| Resistance min | 0Ω |
| Resistance max | .3mΩ |
| Critical Resistance (where applying LEV dissipates Pr) | N/A: -Ω |
| Best Tolerance | - |
| Best TCR | - |
| Isolation Voltage of Insulation | Uninsulated: 0V |
| RoHS Compliant (if Pb-free) | Yes (see below) |
|---|---|
| RoHS Exemption | None |
| China RoHS (if Pb-free) | Compliant |
| REACH Status (if Pb-free) | See REACH statement pdf (below) |
| CMRT Conflict Mineral Status | See CMRT Excel file (below) |
| EMRT Extended Mineral Status | See EMRT Excel file (below) |
| Termination Finish (if Pb-free) | e2 - SnAg (96S) |
| Termination Finish (if Pb-bearing) | Not available |
| How to Specify Pb-Free | All PNs are Pb-free |
| ECCN | EAR99 |
| Packing | Plastic tape & reel |
|---|---|
| Quantity | 1900 |
| Nett Weight Each | - |
| Reflow Process | J-STD-020E |
| MSL | 1 |
| Wave Process | Not compatible |
| Shelf-life | None defined, but solderability test prior to use is recommended after two years from date of manufacture |
| Launch Date | Pre-2000 |
|---|---|
| Lifecycle | Active (Mature) |
| EOL Date / YTEOL Estimate | 5 years or more. (Reviewed May 25) |
| Latest PCN Date | No PCNs |
| Alternative Part Number | - |
| Datasheet | OARS | |
| Application Note | TN001 Advice on Storage Conditions for Fixed Resistors | |
| Application Note | TN002 Instant Access to RoHS REACH Conflict Mineral and other Compliance Data Online | |
| Application Note | TN007 Instant Access to Life Cycle and Obsolete Product Data Online | |
| Application Note | TN009 Parametric and Category Searching for Resistors | |
| Application Note | TN012 Reflow Soldering Profile for SMD Resistors | |
| Brochure | Resistors Shorform Catalogue | |
| Compliance | Mexicali ISO 9001 | |
| Compliance | EU RoHS Declaration for Resistive Products | |
| Compliance | REACH Declaration for Resistive Products | |
| Compliance | CMRT Conflict Mineral Mexicali | |
| Compliance | EMRT Extended Mineral Mexicali | |
| Compliance | Prop65 Declaration for Resistive Products | |
| Compliance | TSCA Declaration for Resistive Products | |
| Compliance | PFAS | |
| Compliance | POPs | |
| Compliance | Tin Whisker Report |
