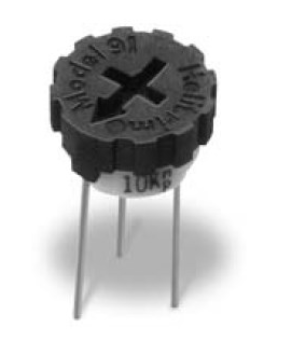

91V

Single Turn Trimmer

Lifecycle:

Active (Mature)

Brand:

BI Technologies

Series:

91

Distributor Inventory
Data Sheet
checkmark

3/8" diameter

checkmark

Single-turn

checkmark

Cermet

Specifications

Series 91
Type Single Turn
Mounting TH
Adjustment Orientation Side
Shape Circular
Material Cermet
Number of Turns 1
Size 3/8"
Sealed True
Packaging Standard: Boxes. Capacity = 100 units.
Standard Resistance Min 10Ω
Standard Resistance Max 2MΩ
Standard Resistance Tolerance 20%
Power 0.5W
Operating Temp Min -55°C
Operating Temp Max 125°C
Lifecycle Active (Mature)
EOL Estimate No EOL planned
Latest PCN Date No PCNs
Alternative Part Number -
