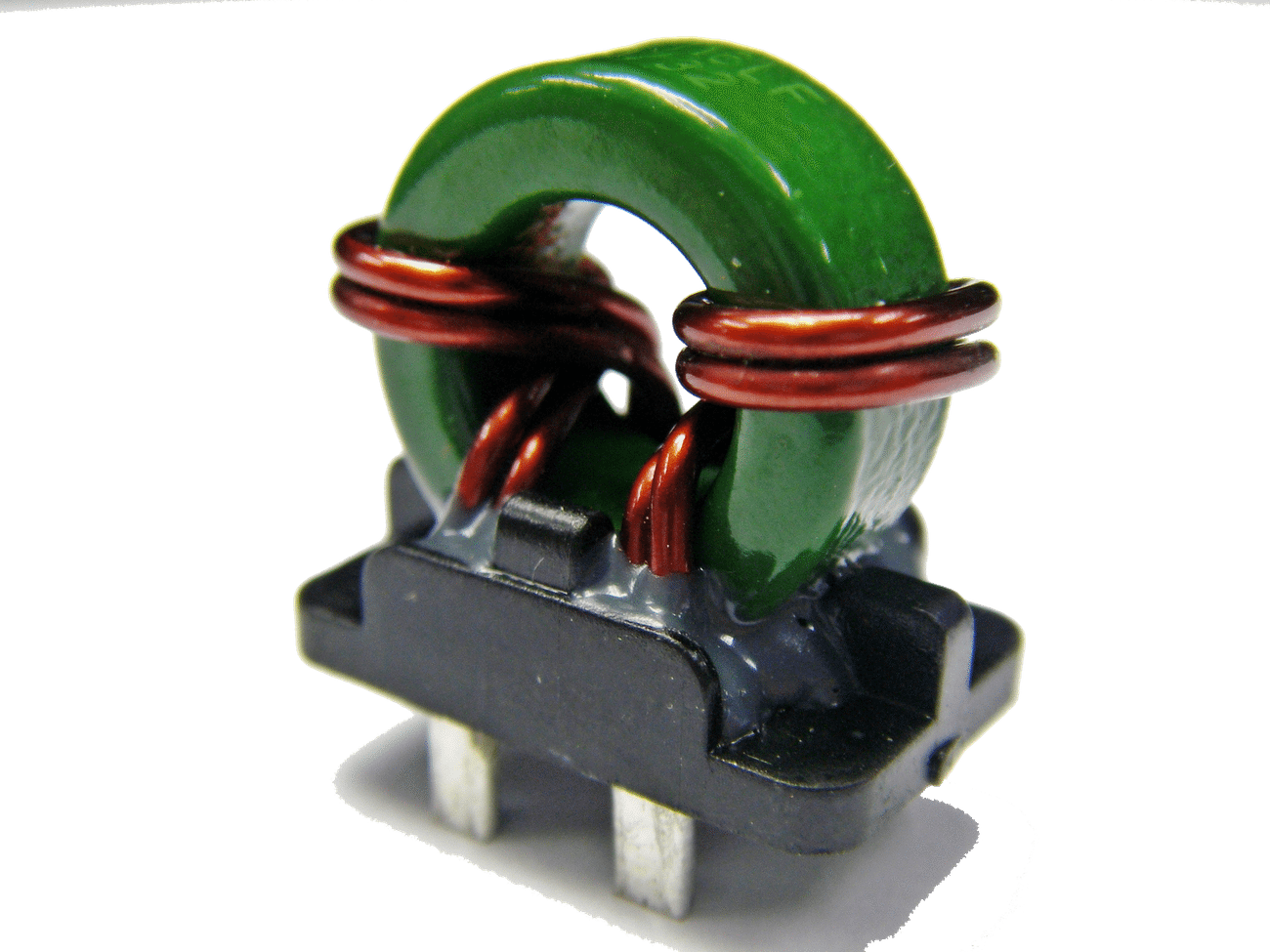

HA19-40000LF

EPS common mode choke

Brand:

BI Technologies

Quote Request
Data Sheet

Specifications

Mounting TH
Shape Toroidal
Length 27mm
Width 15.5mm
Height 25mm
Inductance Type -
Packaging Options Bulk
RoHS Compliant Yes
Inductance Min 84.6uH
Inductance Max -
Rated Current @ 25°C ambient Min 28.5A
Rated Current @ 25°C ambient Max 28.5A
Saturation Current @ 25°C ambient Min -
Saturation Current @ 25°C ambient Max -
DC Resistance Min -
DC Resistance Max 1.4mΩ
Operating Temperature Min -40°C
Operating Temperature Max 125°C
Application
  • Electric power steering
  • EMI
AEC-Q200 Certified True
