ATRU & TRU's

High Reliability Ultra Compact Solutions

Brand:

Ferranti

Lifecycle:

Mature

checkmark

Ultra-reliability – minimum component count provides extremely high MTBF for mission critical application and flight safety

checkmark

for internal and external power on commercial aircraft, radar and communications power on defence platforms Compliance to DO-160G, MIL-STD-1399, MIL-STD-704

checkmark

Rugged design for use with a wide range of temperatures and acceleration profiles. DO-160G, MIL-S-901, MIL-STD-167, MIL-STD-810

checkmark

Optimised size, weight and cooling from time of initial design all performance characteristics are analysed for their impact on size, weight, temperature rise, efficiency. Convection, conduction and forced-air cooling Motor drive application – 400 VDC output, 15kW continuous

checkmark

Filtered DC output for very low ripple (<0.1 V P-P with balanced line input)

checkmark

Diode switching profile selected for EMI emissions and lighting susceptibility compliance to DO-160

checkmark

Utilises newly designed transformer topology – along with efficient, low-weight heat-transfer approach previously designed and employed by TT Electronics

checkmark

Short development cycle – less than 16 weeks from time of order until delivery of qualification units

checkmark

COTS enclosure – ARINC 600 5-MCU standard dimensions

checkmark

Optimised weight – 32 lbs. for 15kW continuous

checkmark

Manufacturable – Transformer/diodes/filter inductor fully assembled prior to installation in enclosure.

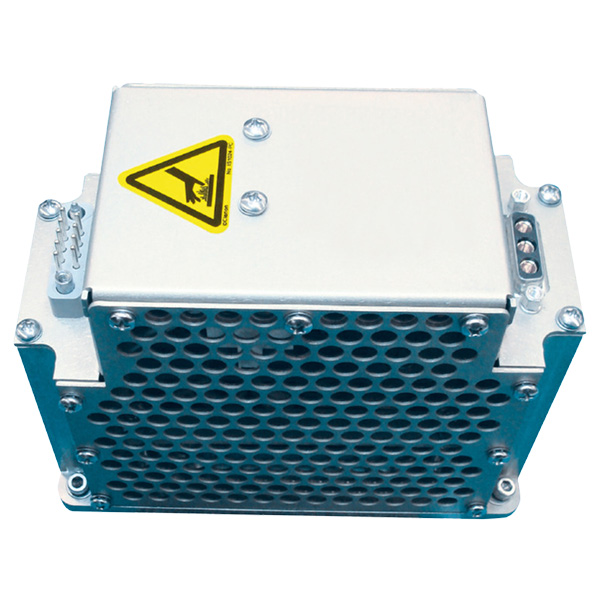

TT Electronics provides auto-transformer rectifier units (non-isolated). This newly designed ATRU has been optimised for use aboard commercial aircraft and utilised to drive a powerful DC motor. Several design innovations are employed – a newly designed phase-shifting autotransformer topology, enhanced forced air cooling and DC filtering for improved motor performance. Fully DO-160 compliant, this package provides flexibility in ATRU design for other applications and power levels. and transformer/rectifier units (isolated) optimised for minimum size and weight, and maximum reliability, solving many of the challenges inherent in airborne rectification.

Specifications

Output -
DC Input 200/115 V, 3 phase, 400 Hz per DO-160G Section 16 Cat A(CF)
DC Output 400 VDC nominal unregulated
Efficiency > 97%, 50-100% load
Ripple <3 V peak – peak with unbalanced lines
Rating -
Thermal Forced air cooling, 180 deg. C insulation system, thermal monitoring
Power 15kW continuous, 30 kW for 30 seconds, 45kW for 5 seconds
