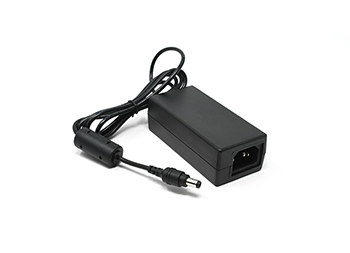

PEAMD36-10-B1

Medical Desktop Power Supply 5V 20 Watt

Brand:

Power Partners

Series:

PEAMD36

Lifecycle:

Mature

checkmark

IEC 60601-1-2 4th Edition EMC Compliant

checkmark

Class I and Class II Versions

checkmark

BF Rated Class II Version

checkmark

Meets Efficiency Level VI Requirements

checkmark

LED on Indicator

checkmark

Overload Protection

checkmark

Short Circuit Protection

checkmark

No Load Operation

checkmark

100% Burn-In/Hi-Pot Testing

Specifications

Output Power 20W
Output Voltage 1 5V
Output Voltage 2 -
Output Voltage 3 -
Output Current 4A
Output Current 2 -
Output Current 3 -
Input Connector C14
Output Connector 2.1x5.5x10
Class
  • I
  • II
Temperature 0-60 (100% @40 linear drop to 50% @60)C
Dimensions 45x100x31mm
Product Brand Name Power Partners
