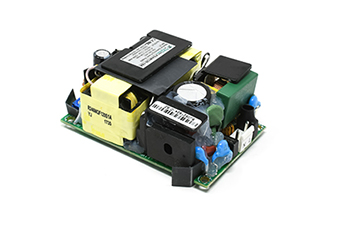

PDAM120-18C
Enclosed Power Supply 48V 120 Watt
Lifecycle:
Mature
Brand:
Protek
Series:
PDAM120
Very High Power Density: 15.27W/in3
Class I or Class II Configuration
UL/EN60601-1 Medical Approval
Small 2”x3” package
Efficiencies up to 91%
Suitable for BF Applied Part Applications
Meets Efficiency Level VI Requirements
No load power consumption <300mW
Specifications
| Output Power | 120W |
|---|---|
| Number of Outputs | 1V |
| Output Voltage 1 | 48V |
| Output Voltage 2 | - |
| Output Voltage 3 | - |
| Output Voltage 4 | - |
| Output Current 1 | 1.77A |
| Output 1 Max Current with CFM | 2.5A |
| CFM | 10A |
| Output 2 Max Current | - |
| Output 3 Max Current | - |
| Output 4 Max Current | - |
| Application | Medical |
| Class |
|
| Battery Charger | False |
| Temperature | -30C to +70°C (with derating)C |
| Dimensions | - |
| Product Brand | Protek |
