PDAM500-12C

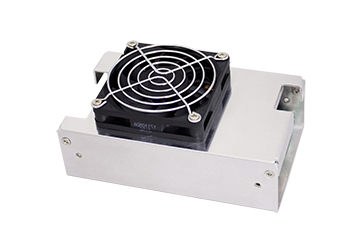

Enclosed Power Supply 12V 500 Watt
Lifecycle:
Mature
Brand:
Power Partners
Series:
PDAM500
UL / IEC / EN 60601 3.1 Edition and UL / IEC / EN
60950 AM2 Safety Approvals
High power density: 500W in 3” x 5” footprint
Open Frame or Enclosed Versions Available
Remote ON/OFF Function
Built-in 12V/0.3A Auxiliary Output
Standby 5V @ 1A with Fan, @ 0.4A without Fan
High Efficiency up to 93%
P.F.C. Function >0.95
Specifications
| Output Power | 500W |
|---|---|
| Number of Outputs | 1V |
| Output Voltage 1 | 12V |
| Output Voltage 2 | - |
| Output Voltage 3 | - |
| Output Voltage 4 | - |
| Output Current 1 | 20A |
| Output 1 Max Current with CFM | 41.5A |
| CFM | 30A |
| Output 2 Max Current | - |
| Output 3 Max Current | - |
| Output 4 Max Current | - |
| Application | Medical |
| Class | I |
| Battery Charger | False |
| Temperature | -10-70 (Derate from 100% at +50℃ linearly to 50% at +70℃, applicable to convection and forced-air cooling conditions)C |
| Dimensions | 101.6x177.8x42.6mm |
| Product Brand | Power Partners |
