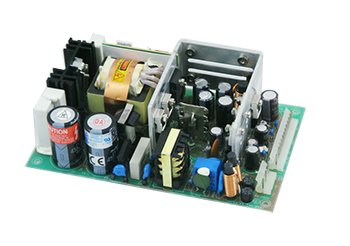

PM110-46C
Enclosed Power Supply -15-15V 101 Watt
Lifecycle:
Mature
Brand:
Protek
Series:
PM110
Low safety ground leakage current
Meet EN55011 and FCC Class B
Small size, light weigh
100% burn-in
Wide input range 85 -264 VAC
Input surge current protection
Overvoltage protection
Overcurrent protection
Compliant with RoHS requirements
Specifications
| Output Power | 101W |
|---|---|
| Number of Outputs | 4V |
| Output Voltage 1 | 5.1V |
| Output Voltage 2 | 15V |
| Output Voltage 3 | -15V |
| Output Voltage 4 | -15V |
| Output Current 1 | 10A |
| Output 1 Max Current with CFM | - |
| CFM | - |
| Output 2 Max Current | 7.5A |
| Output 3 Max Current | 1A |
| Output 4 Max Current | 1A |
| Application | Medical |
| Class | I |
| Battery Charger | False |
| Temperature | 0 to 70 (linear drop from 100% @50 to 50% @70)C |
| Dimensions | 108x177.8x47mm |
| Product Brand | Protek |
