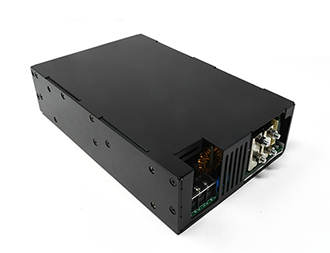

PM1100-15C
Enclosed Power Supply 28V 1100 Watt
Lifecycle:
Mature
Brand:
Protek
Series:
PM1100
BF Class insulation
Operation altitude up to 5000 meters
Compact size 5.91” x 9.25” x 2.4”
Less than 300 μA leakage current
EN55011 Class B conducted emissions
Inhibit - TTL low to disable output
Standard PS Off and DC OK signals
High Efficiency 89% typical
Compliant with RoHS requirements
Standby output 5VDC at 200mA
Variable speed internal fan
Overvoltage protection
Overcurrent protection
Thermal protection
Specifications
| Output Power | 1.1kW |
|---|---|
| Number of Outputs | 1V |
| Output Voltage 1 | 28V |
| Output Voltage 2 | - |
| Output Voltage 3 | - |
| Output Voltage 4 | - |
| Output Current 1 | 39.29A |
| Output 1 Max Current with CFM | - |
| CFM | - |
| Output 2 Max Current | - |
| Output 3 Max Current | - |
| Output 4 Max Current | - |
| Application | Medical |
| Class | I |
| Battery Charger | False |
| Temperature | -10-70 (Derate from 100% at +50℃ linearly to 50% at +70℃, applicable to convection and forced-air cooling conditions)C |
| Dimensions | 150x235x61mm |
| Product Brand | Protek |
