2N5794U
Transistor 2NPN 40V 0.6A
Lifecycle:
Active (Mature)
Brand:
Optek Technology

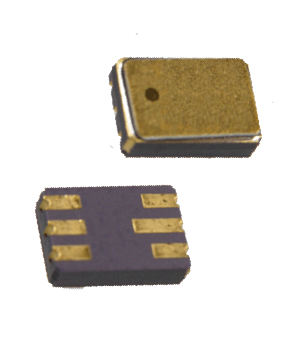

Ceramic 6 pin surface mount package
Small package to minimize circuit board area
Hermetically sealed
Electrical performance similar to dual 2N2222
Processed per MIL-PRF-19500/495
Specifications
| Applications |
|
|---|---|
| Packaging | SMC 6-Pin Ceramic |
| Lead Spacing | - |
| Component Type | Transistor |
| High Reliability | True |
| Screening Level | General |
| Hall Effect | No |
| Photologic | No |
| Photo Detector Type | - |
| Number of Elements | 2 Individual silicon NPN transistors |
| Material | Silicon |
| Color | - |
| Lead Length Min | - |
| Lead Length Max | - |
| Receiver Type | - |
| Responsivity Min/Max/Typ | - |
| RoHs Compliance | Y |
| Wavelength | - |
|---|---|
| Beam Angle | - |
| Viewing Angle | - |
| Output Power (mW/cm2) Min/Max | - |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Data Rate Max | - |
| Rise Time Typ | 45 / 310ns |
| Reverse Voltage | - |
| Peak Response Wavelength | - |
| Spectral Response Wavelength | - |
| Output Type | Dual NPN Transistor |
| VCE Max | 45V |
| VCC Range | - |
| IF Typ/Max | - |
| Forward-Current Transfer Ratio Min | 35H |
| Forward-Current Transfer Ratio Max | 300H |
| Light Current IC(ON) Min | - |
| Light Current IC(ON) Max | - |
| ICCL/ICCH | - |
