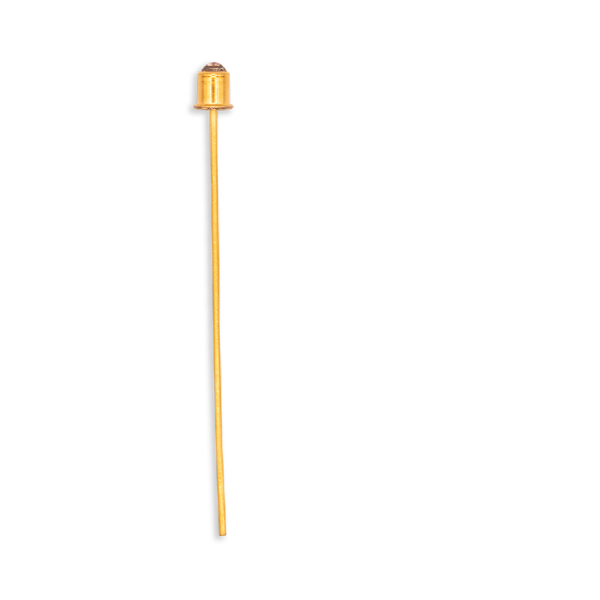

OP215A
Infrared LED
Lifecycle:
Active (Mature)
Brand:
Optek Technology
Hermetically sealed package
Mechanically and spectrally matched to other OPTEK devices
Designed for direct mount to PC Board
Enhanced temperature range
Excellent coupling efficiency
Specifications
| Applications |
|
|---|---|
| Packaging | Coaxial |
| Lead Spacing | - |
| Component Type | Infrared LED |
| High Reliability | False |
| Screening Level | - |
| Hall Effect | No |
| Photologic | No |
| Photo Detector Type | - |
| Number of Elements | 1 |
| Material | GaAlAs |
| Color | - |
| Lead Length Min | 1" |
| Lead Length Max | 1" |
| Receiver Type | - |
| Responsivity Min/Max/Typ | - |
| RoHs Compliance | Y |
| Wavelength | 890nm |
|---|---|
| Beam Angle | 24° |
| Viewing Angle | - |
| Output Power (mW/cm2) Min/Max | 1.2 / -mW / cm2 |
| Operating Temperature | -65°C ~ 125°C |
| Data Rate Max | - |
| Rise Time Typ | 500 / 250ns |
| Reverse Voltage | 2T |
| Peak Response Wavelength | - |
| Spectral Response Wavelength | - |
| Output Type | - |
| VCE Max | - |
| VCC Range | - |
| IF Typ/Max | 50 / 100mA |
| Forward-Current Transfer Ratio Min | - |
| Forward-Current Transfer Ratio Max | - |
| Light Current IC(ON) Min | - |
| Light Current IC(ON) Max | - |
| ICCL/ICCH | - |
