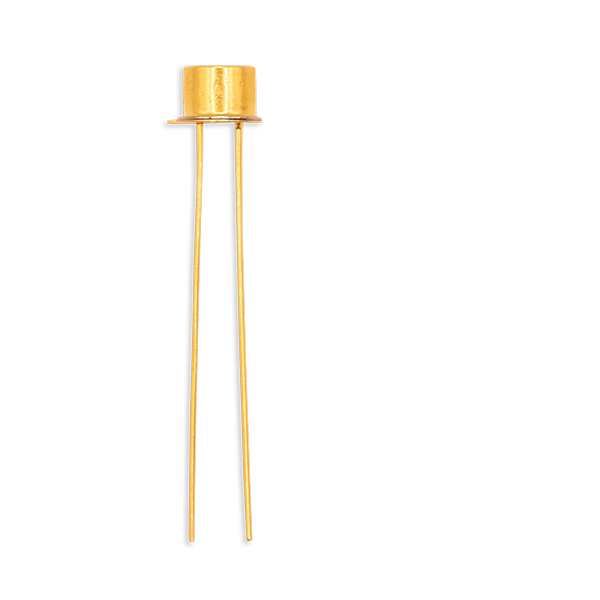

OP230WPS
Infrared LED
Lifecycle:
Active (Mature)
Brand:
Optek Technology
Point source
Symmetrical beam pattern
Flat lens for wide beam angle
Ideal for use with collimating lenses
Wide operating temperature range
TO-46 metal can package
Specifications
| Applications |
|
|---|---|
| Packaging | TO-46 Flat Window |
| Lead Spacing | 0.100" |
| Component Type | Infrared LED |
| High Reliability | False |
| Screening Level | - |
| Hall Effect | No |
| Photologic | No |
| Photo Detector Type | - |
| Number of Elements | 1 |
| Material | GaAlAs |
| Color | - |
| Lead Length Min | 0.5" |
| Lead Length Max | - |
| Receiver Type | - |
| Responsivity Min/Max/Typ | - |
| RoHs Compliance | Y |
| Wavelength | 890nm |
|---|---|
| Beam Angle | 90° |
| Viewing Angle | - |
| Output Power (mW/cm2) Min/Max | 0.5 / -mW / cm2 |
| Operating Temperature | -40°C ~ 125°C |
| Data Rate Max | - |
| Rise Time Typ | 20 / 20ns |
| Reverse Voltage | 2T |
| Peak Response Wavelength | - |
| Spectral Response Wavelength | - |
| Output Type | - |
| VCE Max | - |
| VCC Range | - |
| IF Typ/Max | 20 / 100mA |
| Forward-Current Transfer Ratio Min | - |
| Forward-Current Transfer Ratio Max | - |
| Light Current IC(ON) Min | - |
| Light Current IC(ON) Max | - |
| ICCL/ICCH | - |
