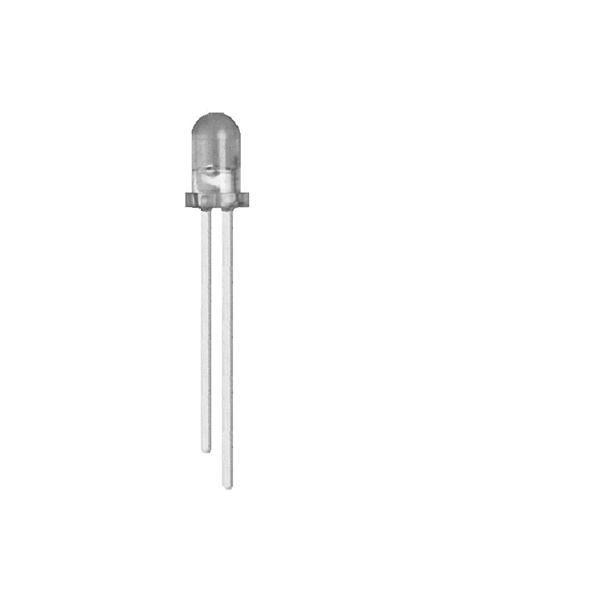

OP265B
Infrared LED
Lifecycle:
Active (Mature)
Brand:
Optek Technology
Calibration point 50% of Vcc
Logic trip points either 1/3 or 2/3 Vcc
Can be used with reflective or interruptive devices
Vcc 4.5 V to 5.5 V
Logic and analog outputs
Specifications
| Applications | Calibration applications |
|---|---|
| Packaging | T-1 [3mm] |
| Lead Spacing | .050" |
| Component Type | Infrared LED |
| High Reliability | False |
| Screening Level | - |
| Hall Effect | No |
| Photologic | No |
| Photo Detector Type | - |
| Number of Elements | 1 |
| Material | GaAlAs |
| Color | Clear |
| Lead Length Min | 0.675" |
| Lead Length Max | 0.675" |
| Receiver Type | - |
| Responsivity Min/Max/Typ | - |
| RoHs Compliance | Y |
| Wavelength | 890nm |
|---|---|
| Beam Angle | 18° |
| Viewing Angle | - |
| Output Power (mW/cm2) Min/Max | 1.65 / 4.70mW / cm2 |
| Operating Temperature | -40°C ~ 100°C |
| Data Rate Max | - |
| Rise Time Typ | 500 / 250ns |
| Reverse Voltage | 2T |
| Peak Response Wavelength | - |
| Spectral Response Wavelength | - |
| Output Type | - |
| VCE Max | - |
| VCC Range | - |
| IF Typ/Max | 20 / 50mA |
| Forward-Current Transfer Ratio Min | - |
| Forward-Current Transfer Ratio Max | - |
| Light Current IC(ON) Min | - |
| Light Current IC(ON) Max | - |
| ICCL/ICCH | - |
