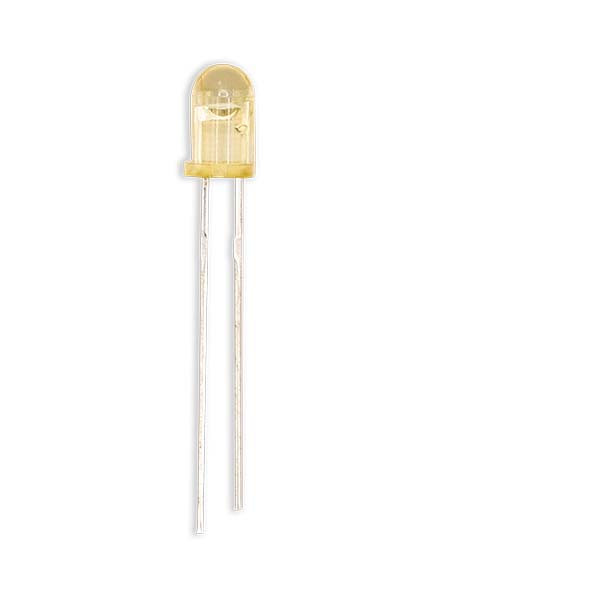

OP293A
Infrared LED
Lifecycle:
Active (Mature)
Brand:
Optek Technology
Choice of narrow or wide irradiance pattern
Choice of power ranges
Choice of T-1¾, TO-18 or TO-46 package
Higher power output than GaAs at equivalent LEDs
Specifications
| Applications |
|
|---|---|
| Packaging | Plastic TO-18, wide angle |
| Lead Spacing | .100" |
| Component Type | Infrared LED |
| High Reliability | False |
| Screening Level | - |
| Hall Effect | No |
| Photologic | No |
| Photo Detector Type | - |
| Number of Elements | 1 |
| Material | GaAlAs |
| Color | - |
| Lead Length Min | 0.75" |
| Lead Length Max | - |
| Receiver Type | - |
| Responsivity Min/Max/Typ | - |
| RoHs Compliance | Y |
| Wavelength | 890nm |
|---|---|
| Beam Angle | 60° |
| Viewing Angle | - |
| Output Power (mW/cm2) Min/Max | 16.0 / -mW / cm2 |
| Operating Temperature | -40°C ~ 100°C |
| Data Rate Max | - |
| Rise Time Typ | 500 / 250ns |
| Reverse Voltage | 2T |
| Peak Response Wavelength | - |
| Spectral Response Wavelength | - |
| Output Type | - |
| VCE Max | - |
| VCC Range | - |
| IF Typ/Max | 100 / 2,000 PulsedmA |
| Forward-Current Transfer Ratio Min | - |
| Forward-Current Transfer Ratio Max | - |
| Light Current IC(ON) Min | - |
| Light Current IC(ON) Max | - |
| ICCL/ICCH | - |
