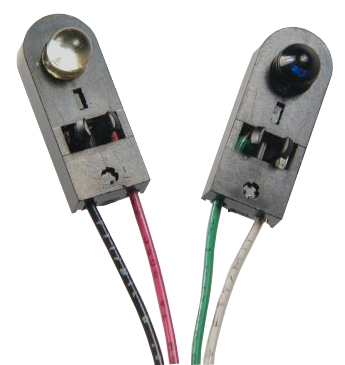

OPB100-EZ
890nm Infrared LED Emitter
Lifecycle:
Active (Mature)
Brand:
Optek Technology
Flat lens for wide radiation angle (OP168, OP268)
Easily stackable on 0.100" (2.54 mm) hole centers
Mechanically and spectrally matched to other OPTEK devices
Specifications
| Applications |
|
|---|---|
| Packaging | Snap Housing / Wires |
| Lead Spacing | - |
| Component Type | Infrared LED Emitter |
| High Reliability | False |
| Screening Level | - |
| Hall Effect | No |
| Photologic | No |
| Photo Detector Type | Phototransistor |
| Number of Elements | 1 |
| Material | - |
| Color | - |
| Lead Length Min | - |
| Lead Length Max | - |
| Receiver Type | - |
| Responsivity Min/Max/Typ | - |
| RoHs Compliance | Y |
| Wavelength | 890nm |
|---|---|
| Beam Angle | 25° |
| Viewing Angle | - |
| Output Power (mW/cm2) Min/Max | 6.5mW |
| Operating Temperature | -40°C ~ 85°C |
| Data Rate Max | - |
| Rise Time Typ | - |
| Reverse Voltage | - |
| Peak Response Wavelength | - |
| Spectral Response Wavelength | - |
| Output Type | - |
| VCE Max | - |
| VCC Range | - |
| IF Typ/Max | 20 / 100mA |
| Forward-Current Transfer Ratio Min | - |
| Forward-Current Transfer Ratio Max | - |
| Light Current IC(ON) Min | 5mA |
| Light Current IC(ON) Max | - |
| ICCL/ICCH | - |
