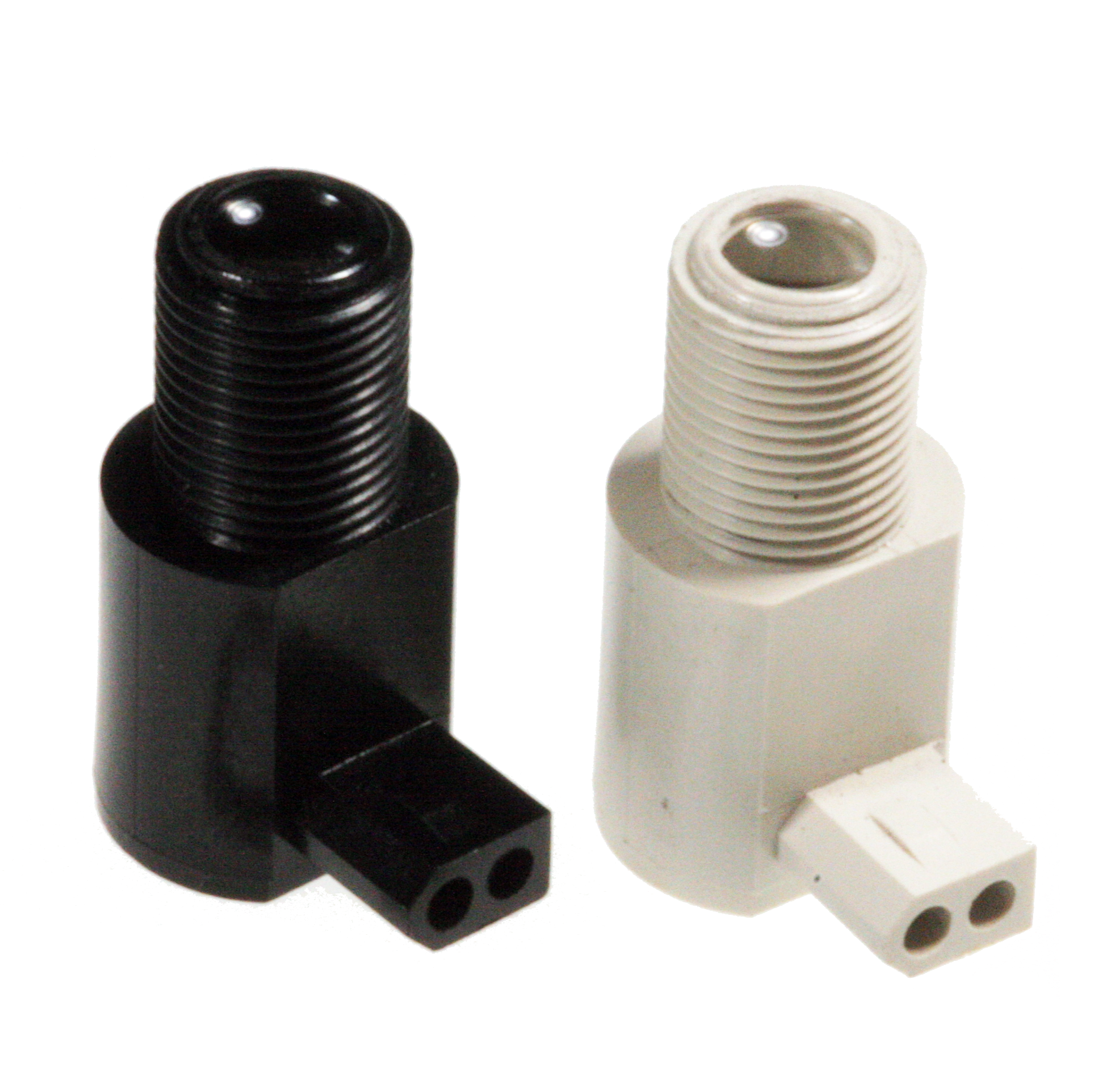

OPB856Z
LED-Sensor Pair
Lifecycle:
Active (Mature)
Brand:
Optek Technology
Choice of narrow or wide irradiance pattern
Choice of power ranges
Choice of T-1¾, TO-18 or T-46 package
Higher power output than GaAs at equivalent LEDs
Specifications
| Applications |
|
|---|---|
| Packaging | Module Pair, Connectorized |
| Lead Spacing | - |
| Component Type | LED-Sensor Pair |
| High Reliability | False |
| Screening Level | - |
| Hall Effect | No |
| Photologic | No |
| Photo Detector Type | - |
| Number of Elements | 1 |
| Material | - |
| Color | - |
| Lead Length Min | - |
| Lead Length Max | - |
| Receiver Type | - |
| Responsivity Min/Max/Typ | - |
| RoHs Compliance | Y |
| Wavelength | 935nm |
|---|---|
| Beam Angle | 18° |
| Viewing Angle | 20° |
| Output Power (mW/cm2) Min/Max | - |
| Operating Temperature | -40°C ~ 85°C |
| Data Rate Max | - |
| Rise Time Typ | - |
| Reverse Voltage | - |
| Peak Response Wavelength | - |
| Spectral Response Wavelength | - |
| Output Type | - |
| VCE Max | 30V |
| VCC Range | - |
| IF Typ/Max | 20 / 50mA |
| Forward-Current Transfer Ratio Min | - |
| Forward-Current Transfer Ratio Max | - |
| Light Current IC(ON) Min | 1.8mA |
| Light Current IC(ON) Max | - |
| ICCL/ICCH | - |
