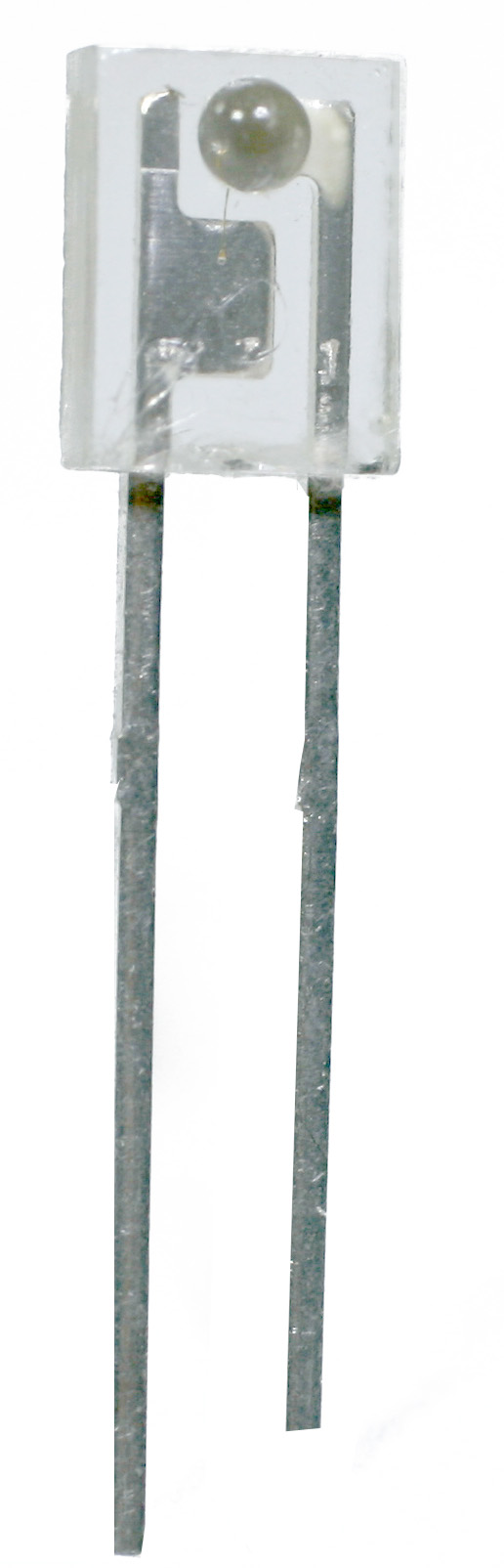

OPS693

LED-Sensor Pair

Lifecycle:

Active (Mature)

Brand:

Optek Technology

Distributor Inventory
Data Sheet
checkmark

Wide receiving angle

checkmark

Four sensitivity ranges

checkmark

Side-looking package

checkmark

Ideal for space-limited applications

checkmark

Ideal for PCBoard mounting

checkmark

Choice of clear, opaque or blue-tinted package

Specifications

Applications
  • Applications requiring wide receiving angle
  • Applications requiring PCBoard mounting
  • Space-limited applications
  • Optical switches
  • Optical interrupt detectors
  • Optical encoders
  • Non-contact position sensing
  • Machine automation
Packaging Sidelooker 0.060" Thick exc. Lens
Lead Spacing .100"
Component Type LED-Sensor Pair
High Reliability False
Screening Level -
Hall Effect No
Photologic No
Photo Detector Type Phototransistor
Number of Elements 1
Material -
Color -
Lead Length Min 0.5"
Lead Length Max 0.5"
Receiver Type -
Responsivity Min/Max/Typ -
RoHs Compliance Y
Wavelength 935nm
Beam Angle 40°
Viewing Angle 60°
Output Power (mW/cm2) Min/Max -
Operating Temperature -40°C ~ 100°C
Data Rate Max -
Rise Time Typ -
Reverse Voltage -
Peak Response Wavelength -
Spectral Response Wavelength -
Output Type -
VCE Max 30V
VCC Range -
IF Typ/Max 20 / 50mA
Forward-Current Transfer Ratio Min -
Forward-Current Transfer Ratio Max -
Light Current IC(ON) Min 2mA
Light Current IC(ON) Max -
ICCL/ICCH -
