OPF1414
High Speed Fiber Optic Transmitter
Lifecycle:
Active (Mature)
Brand:
Optek Technology
Low cost
High speed
No mounting hardware required
Wide temperature range
100% LED burn-in (96 hours)

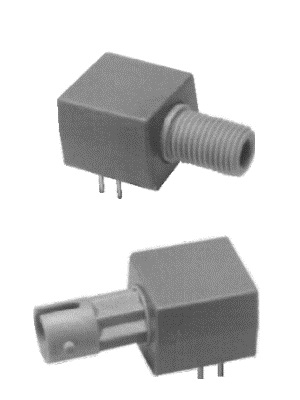

SMA or ST style ports
Wave solderable
Specifications
| Applications | Small fiber applications or where there are large fixed losses such as in systems that contain star couplers or in line connectors |
|---|---|
| Package | ST-Plastic, PCB Mount |
| Receiver Output Type | - |
| Receiver or Transmitter | Transmitter |
| High Reliability | No |
| Hall Effect | No |
| Photologic | No |
| Lead Length Min | - |
| Lead Length Max | - |
| Responsivity Min/Max/Typ | - |
| Fiber Size | 50 / 125µm |
| RoHs Compliance | Y |
| Laser Class | - |
| Wavelength | 840nm |
|---|---|
| Supply Voltage | - |
| IF (mA) Max | 100mA |
| Operating Temperature | -40°C ~ 85°C |
| Data Rate Max | - |
| Input Sensitivity | - |
| Peak Input Power | - |
| Rise Time Typ | 6.5ns |
| Reverse Voltage | - |
| Output Type | LED - Light output |
| VCE Max | - |
| VCC Max Range | - |
| ICCL/ICCH | - |
| Alternative Part Number | - |
|---|
