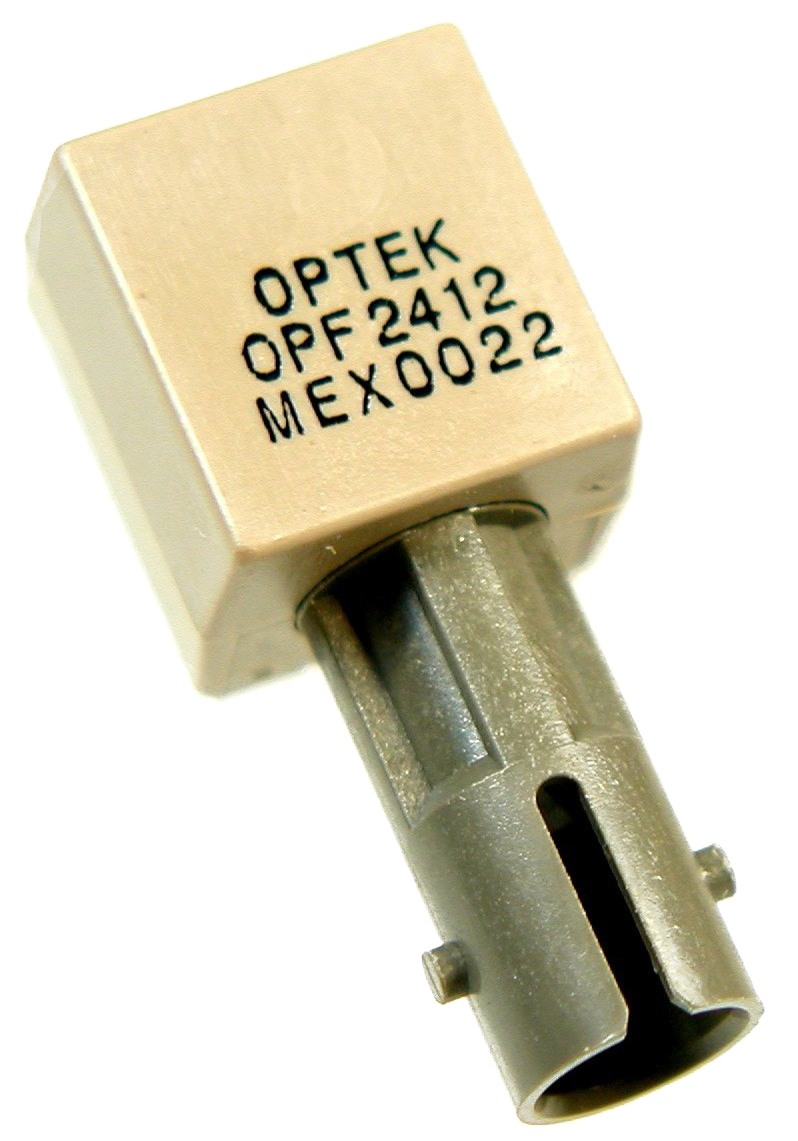

OPF2412T
Fiber Optic Receiver
Lifecycle:
Active (Mature)
Brand:
Optek Technology
Up to 5Mbps operation
850nm wavelength
ST style port
CMOS and TTL compatible
Wave solderable
Wide temperature range
Specifications
| Applications |
|
|---|---|
| Package | ST-Plastic, Panel Mount |
| Receiver Output Type | Logic, Open Collector |
| Receiver or Transmitter | Receiver |
| High Reliability | No |
| Hall Effect | No |
| Photologic | No |
| Lead Length Min | - |
| Lead Length Max | - |
| Responsivity Min/Max/Typ | - |
| Fiber Size | - |
| RoHs Compliance | Y |
| Laser Class | - |
| Wavelength | 850nm |
|---|---|
| Supply Voltage | 4.75 ~ 5.25V |
| IF (mA) Max | - |
| Operating Temperature | -40°C ~ 85°C |
| Data Rate Max | 5Mbps |
| Input Sensitivity | -400dbm / µw |
| Peak Input Power | -0.0767dbm / µw |
| Rise Time Typ | - |
| Reverse Voltage | - |
| Output Type | TTL or CMOS |
| VCE Max | 18V |
| VCC Max Range | 4.5 - 5.5V |
| ICCL/ICCH | 6.2 / 3.5mA |
| Alternative Part Number | - |
|---|
