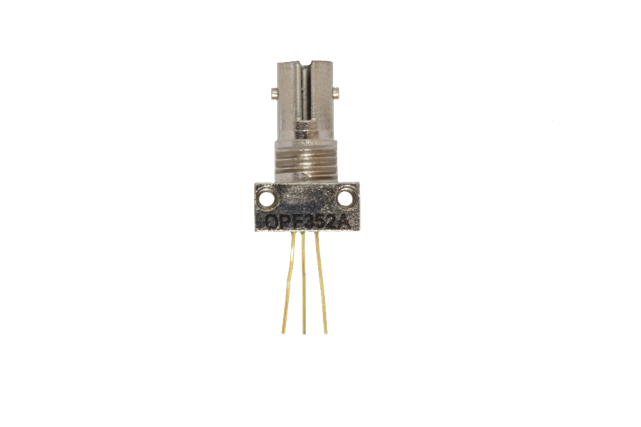

OPF352A
EOL - Fiber Optic Transmitter
850nm LED technology
TO-18 plastic clear-cap package
mounted in a ST recepacle
High thermal stability
High optical couplin efficieny to multimode fiber
Industrial temperature range
Specifications
| Applications |
|
|---|---|
| Package | ST-Metal, PCB / Panel Mount |
| Receiver Output Type | - |
| Receiver or Transmitter | Transmitter |
| High Reliability | No |
| Hall Effect | No |
| Photologic | No |
| Lead Length Min | 0.4" |
| Lead Length Max | 0.4" |
| Responsivity Min/Max/Typ | - |
| Fiber Size | 50 / 125 to 200 / 300µm |
| RoHs Compliance | Y |
| Laser Class | - |
| Wavelength | 850nm |
|---|---|
| Supply Voltage | - |
| IF (mA) Max | 100mA |
| Operating Temperature | -40°C ~ 85°C |
| Data Rate Max | - |
| Input Sensitivity | -0.64dbm / µw |
| Peak Input Power | - |
| Rise Time Typ | 7ns |
| Reverse Voltage | 1.8V |
| Output Type | Obsolete |
| VCE Max | ObsoleteV |
| VCC Max Range | ObsoleteV |
| ICCL/ICCH | - |
| Alternative Part Number | OPF372A |
|---|
