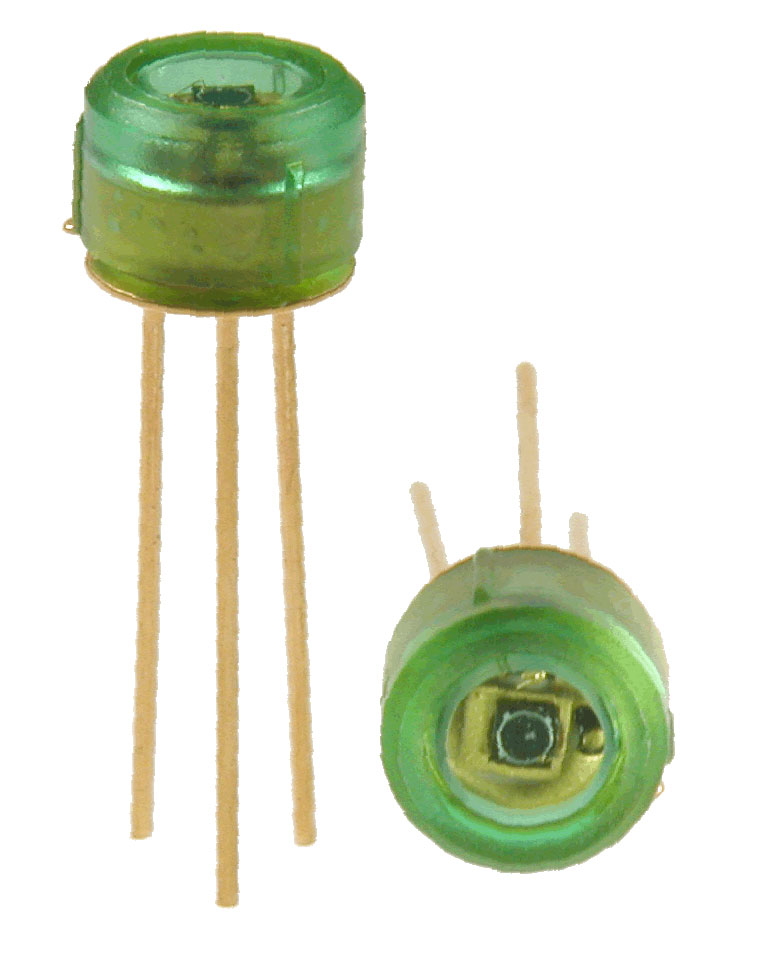

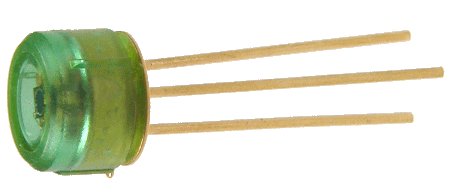

OPF480
Fiber Optic Detector
Lifecycle:
Active (Mature)
Brand:
Optek Technology
Electrically isolated plastic cap package
High speed, low capacitance
Designed to self align in the 0.228 diameter bore of standard fiber optic receptacles
Press fit simplified component installation
100MHz operation minimum
Specifications
| Applications |
|
|---|---|
| Package | TO-18 Green Cap |
| Receiver Output Type | Photodiode |
| Receiver or Transmitter | Receiver |
| High Reliability | No |
| Hall Effect | No |
| Photologic | No |
| Lead Length Min | 0.5" |
| Lead Length Max | 0.5" |
| Responsivity Min/Max/Typ | 0.45mV |
| Fiber Size | - |
| RoHs Compliance | Y |
| Laser Class | - |
| Wavelength | 850nm |
|---|---|
| Supply Voltage | - |
| IF (mA) Max | - |
| Operating Temperature | -40°C ~ 100°C |
| Data Rate Max | - |
| Input Sensitivity | - |
| Peak Input Power | - |
| Rise Time Typ | 2ns |
| Reverse Voltage | 5 / 100V |
| Output Type | Detector - Current |
| VCE Max | 100 V(BR)RV |
| VCC Max Range | - |
| ICCL/ICCH | - |
| Alternative Part Number | - |
|---|
