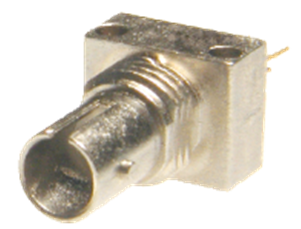

OPF794
Fiber Optic Detector
Lifecycle:
Active (Mature)
Brand:
Optek Technology
High speed, low capacitance
Popular ST style receptacle
Pre-tested with fiber to assure performance
Component pre-mounted and ready to use
100MHz operation minimum
Specifications
| Applications |
|
|---|---|
| Package | ST-LP-Metal, PCB / Panel Mount |
| Receiver Output Type | Photodiode |
| Receiver or Transmitter | Receiver |
| High Reliability | No |
| Hall Effect | No |
| Photologic | No |
| Lead Length Min | 0.4" |
| Lead Length Max | 0.4" |
| Responsivity Min/Max/Typ | 0.45mV |
| Fiber Size | - |
| RoHs Compliance | Y |
| Laser Class | 1M |
| Wavelength | 850nm |
|---|---|
| Supply Voltage | - |
| IF (mA) Max | - |
| Operating Temperature | -40°C ~ 85°C |
| Data Rate Max | - |
| Input Sensitivity | - |
| Peak Input Power | - |
| Rise Time Typ | 2ns |
| Reverse Voltage | - |
| Output Type | Detector - Current |
| VCE Max | 50 V(BR)RV |
| VCC Max Range | - |
| ICCL/ICCH | - |
| Alternative Part Number | - |
|---|
