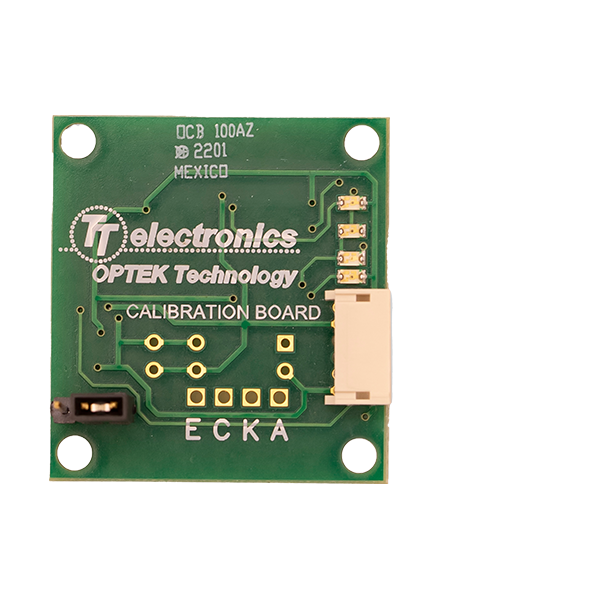

OCB100AZ
Self-Calibration board for thru hole devices
Lifecycle:
Active (Mature)
Brand:
Optek Technology
Calibration point 50% of Vcc
Logic trip points either 1/3 or 2/3 Vcc
Can be used with reflective or interruptive devices
Vcc 4.5V to 5.5V
Logic and analog outputs
Specifications
| Applications | Calibration applications |
|---|---|
| Photo Interrupter Type | Reflective/Slotted |
| Packaging | Self-calibration board |
| Lead Length Min | - |
| Lead Length Max | - |
| RoHs Compliance | Y |
| Slot Width / Depth | None" |
| Wavelength | 935nm |
|---|---|
| VCE Max | - |
| VCC Range | 4.5 - 5.5V |
| Light Current IC(ON) Min | - |
| Light Current IC(ON) Max | - |
| Supply Voltage | 4.5 ~ 5.5V |
