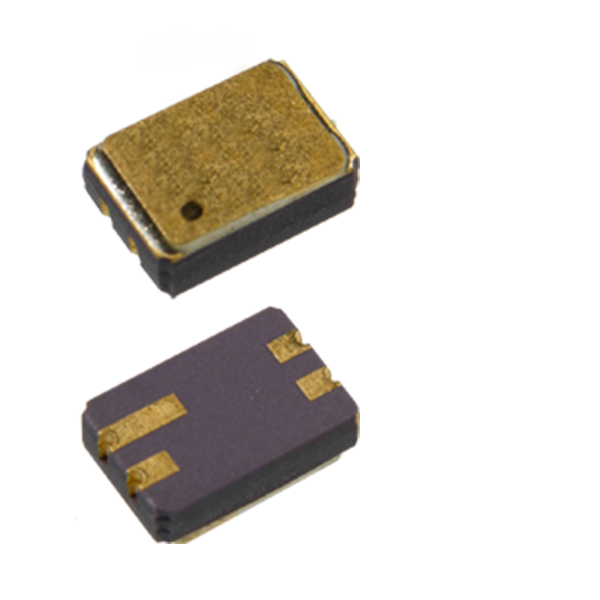

HCC1002
Radiation capable optoisolator 4 Pin SMD
Lifecycle:
Active (Mature)
Brand:
Optek Technology
TID capable to 100Krad (SI)/cm2 ELDRS (0.1rad/s)
Neutron capable to 1E12 neutrons (14MeV)
TX and TXV processing available to MIL-STD-19500
1kV electrical isolation
Specifications
| Applications | Circuit electrical isolation in space applications such as satellites, launchers, space vehicles and planetary rovers |
|---|---|
| Package | 4-CLCC |
| High Reliability | True |
| Screening Level | General |
| Hall Effect | No |
| Photologic | False |
| Lead Length Min / Max | - |
| RoHs Compliance | Y |
| Isolation Voltage | 1kV |
|---|---|
| Sensor Type | Phototransistor |
| CTR Min | 100% @ 10mA |
| Operating Temperature | -55°C ~ 150°C |
| Wavelength | 870nm |
| Rise / Fall | 20µs / 20µs (Max)ns |
| Prop Delay | - |
| VCE Max | 40V |
| VCC Range | - |
| IF Typ/Max | 40mA |
| CTR Max | - |
| Light Current IC(ON) Min | - |
| Alternative Part Number | - |
|---|
