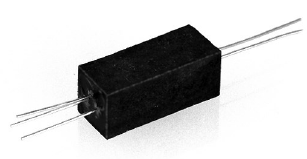

OPI120-032
32mm High Voltage Optoisolator
Lifecycle:
Active (Mature)
Brand:
Optek Technology
15kV dc electrical isolation
Choice of phototransistor or photodarlington output
Hermetically sealed LED and photosensor
Base contact for conventional transistor biasing (OP120 only)
UL recognized File No. E58730
Wide operating temperature range
Specifications
| Applications |
|
|---|---|
| Package | Axial Channel |
| High Reliability | False |
| Screening Level | - |
| Hall Effect | No |
| Photologic | False |
| Lead Length Min / Max | 0.47 / 0.4" |
| RoHs Compliance | Y |
| Isolation Voltage | 15kV |
|---|---|
| Sensor Type | Phototransistor with Base |
| CTR Min | 20% @ 10mA |
| Operating Temperature | -55°C ~ 100°C |
| Wavelength | 890 or 935nm |
| Rise / Fall | 2µs / 2µsns |
| Prop Delay | - |
| VCE Max | 25V |
| VCC Range | - |
| IF Typ/Max | 150mA |
| CTR Max | - |
| Light Current IC(ON) Min | - |
| Alternative Part Number | - |
|---|
