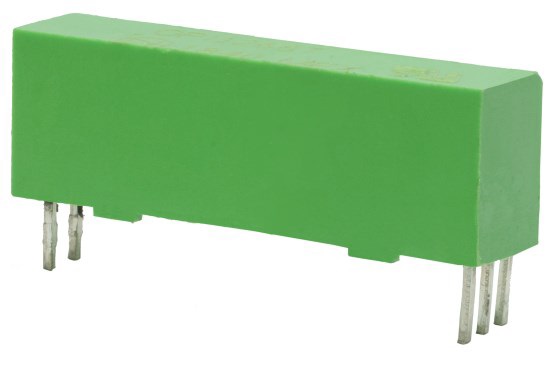

OPI1268T
Optoisolator
Lifecycle:
Active (Mature)
Brand:
Optek Technology
20kV dc isolation
2 Mbit/s transfer rate
tPHL-tPLH - 50 ns typical
Creepage path: 24 mm
TTL compatible
6 Axis / 10GRMS load rating
UL File E58730
Vde File 40031798
EN 60079-0:2012/A11:2013
EN60079-11:2012 (IEC 60079-11:2011 Edition 6)
IP65 rated
ATEX certification Exia IIC Ga
Housing material UL 94 V-0, CTI ≥ 600V
Specifications
| Applications |
|
|---|---|
| Package | Side Channel |
| High Reliability | False |
| Screening Level | - |
| Hall Effect | No |
| Photologic | True |
| Lead Length Min / Max | 0.142" |
| RoHs Compliance | Y |
| Isolation Voltage | 16kV |
|---|---|
| Sensor Type | Photologic-Open Collector |
| CTR Min | - |
| Operating Temperature | -50°C ~ 100°C |
| Wavelength | 850nm |
| Rise / Fall | - |
| Prop Delay | 100ns / 100ns (Max)ns |
| VCE Max | 18V |
| VCC Range | 4.5 / 7V |
| IF Typ/Max | 5 / 30.0mA |
| CTR Max | - |
| Light Current IC(ON) Min | - |
| Alternative Part Number | - |
|---|
