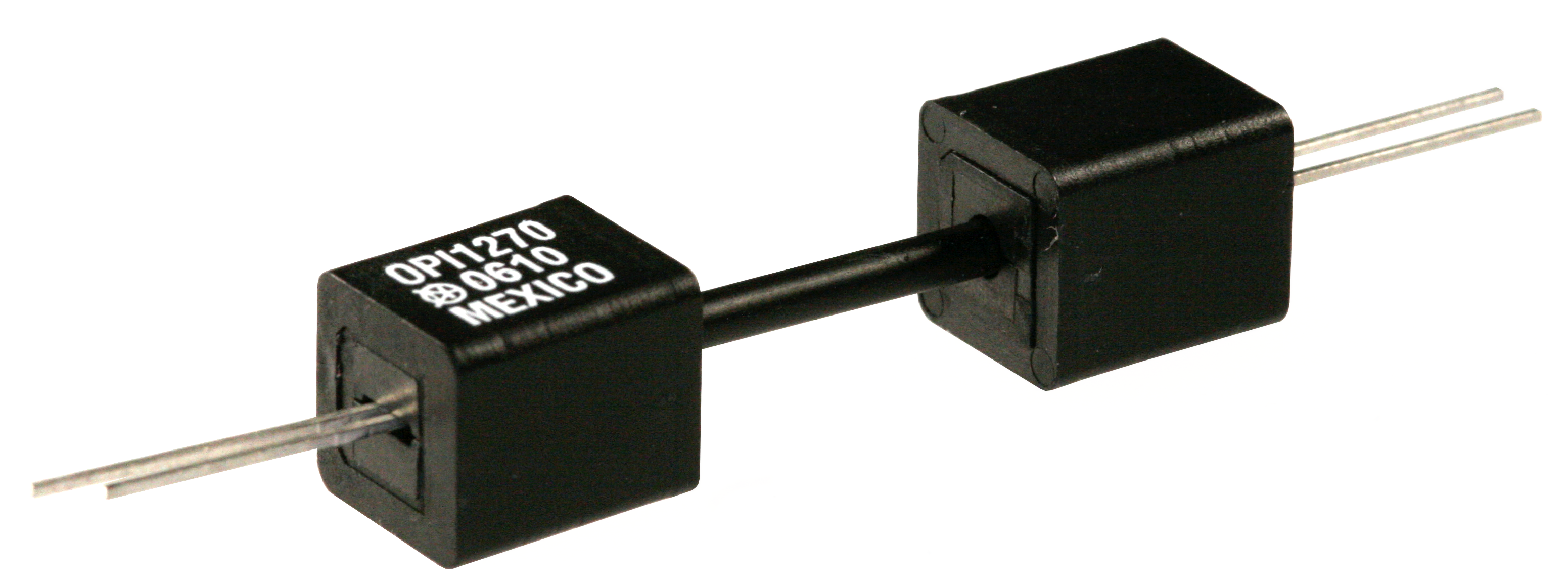

OPI1270-018

Lifecycle:

Active (Mature)

Brand:

Optek Technology

Data Sheet

Opaque plastic housings

High noise immunity

IR LED with phototransistor output

0.05" (1.27mm) lead spacing

Data transfer through plastic fiber optic cable

Isolation voltage 15kV dc (OPI1270-032), longer versions higher

Applications	Requiring high voltage isolation between input and output Electrical isolation in dirty environments Industrial equipment Medical equipment Office equipment
Package	Axial - 4 Leads
High Reliability	False
Screening Level	-
Hall Effect	No
Photologic	False
Lead Length Min / Max	0.45 / 0.51"
RoHs Compliance	Y

Alternative Part Number	-

	Datasheet	OPI1270
	Brochure	Optoelectronics One Pager
	Brochure	Sensors Product Selection Guide
	Brochure	Custom Optoelectronic Assemblies Tri-Fold
	Brochure	Optoelectronics for Medical Tri-Fold
	Product Change Notification	PCN 1139 OPB608R OPB70DWZ OPB70EWZ OPB70FWZ OPB739RWZ OPB748WZ OPI1270 018 OPI1270 026 OPI1270 032
	Product Change Notification	PCN 1147 OPI1270 OPI1280 OPI1290
	Product Change Notification	PCN1149 OPI1270 Family
