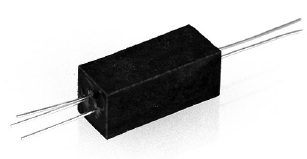

OPI128

Optoisolator

Lifecycle:

Active (Mature)

Brand:

Optek Technology

Distributor Inventory
Data Sheet
checkmark

Multiple output options

checkmark

15kV dc input-to-output isolation voltage

checkmark

Direct TTL/STTL interface

checkmark

High noise immunity

checkmark

Data rates to 250Kbit/s

checkmark

Hermetically sealed

checkmark

TX-TXV process available

checkmark

UL File No. E 58730*

Specifications

Applications
  • High voltage isolation between input and output
  • Electrical isolation in dirty environments
  • Industrial equipment
  • Medical equipment
  • Office equipment
Package Axial Channel
High Reliability False
Screening Level -
Hall Effect No
Photologic True
Lead Length Min / Max 0.4 / 0.9"
RoHs Compliance Y
Isolation Voltage 15kV
Sensor Type Photologic-Inv-Open Collector
CTR Min -
Operating Temperature -55°C ~ 100°C
Wavelength 890nm
Rise / Fall 100ns / 100ns (Typ)ns
Prop Delay 5µs / 5µs (Typ)ns
VCE Max 35V
VCC Range 4.5 / 5.5V
IF Typ/Max 7.5 / 25mA
CTR Max -
Light Current IC(ON) Min -
Alternative Part Number -
