OPI1290-032

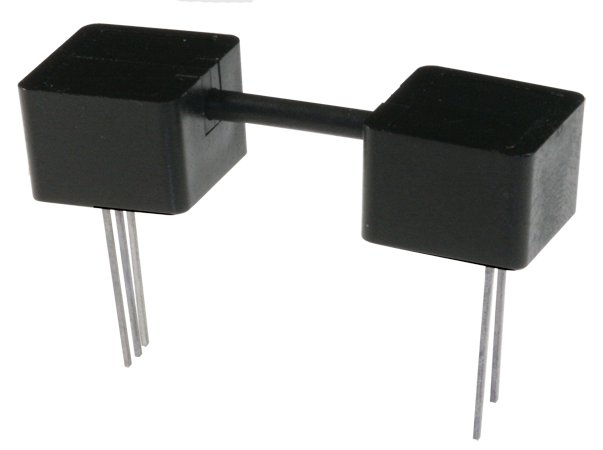

Fiber Optic Isolator 32mm iso dist Side Looker, Photologic
Lifecycle:
Active (Mature)
Brand:
Optek Technology
Opaque plastic housings
High noise immunity
Visible red LED with phototransistor output
0.05" (1.27mm) lead spacing
Data transfer through plastic fiber optic cable
Isolation voltage 15kV (OPI1290-032), longer versions higher
Specifications
| Applications |
|
|---|---|
| Package | Nonstandard, 5 Lead |
| High Reliability | False |
| Screening Level | - |
| Hall Effect | No |
| Photologic | True |
| Lead Length Min / Max | 0.43" |
| RoHs Compliance | Y |
| Isolation Voltage | 15kV |
|---|---|
| Sensor Type | Photologic-Totem-Pole |
| CTR Min | - |
| Operating Temperature | -20°C ~ 75°C |
| Wavelength | 890nm |
| Rise / Fall | 70ns / 70ns (Max)ns |
| Prop Delay | 5µs / 5µs (Typ)ns |
| VCE Max | - |
| VCC Range | 4.5 / 16V |
| IF Typ/Max | - |
| CTR Max | - |
| Light Current IC(ON) Min | - |
| Alternative Part Number | - |
|---|
