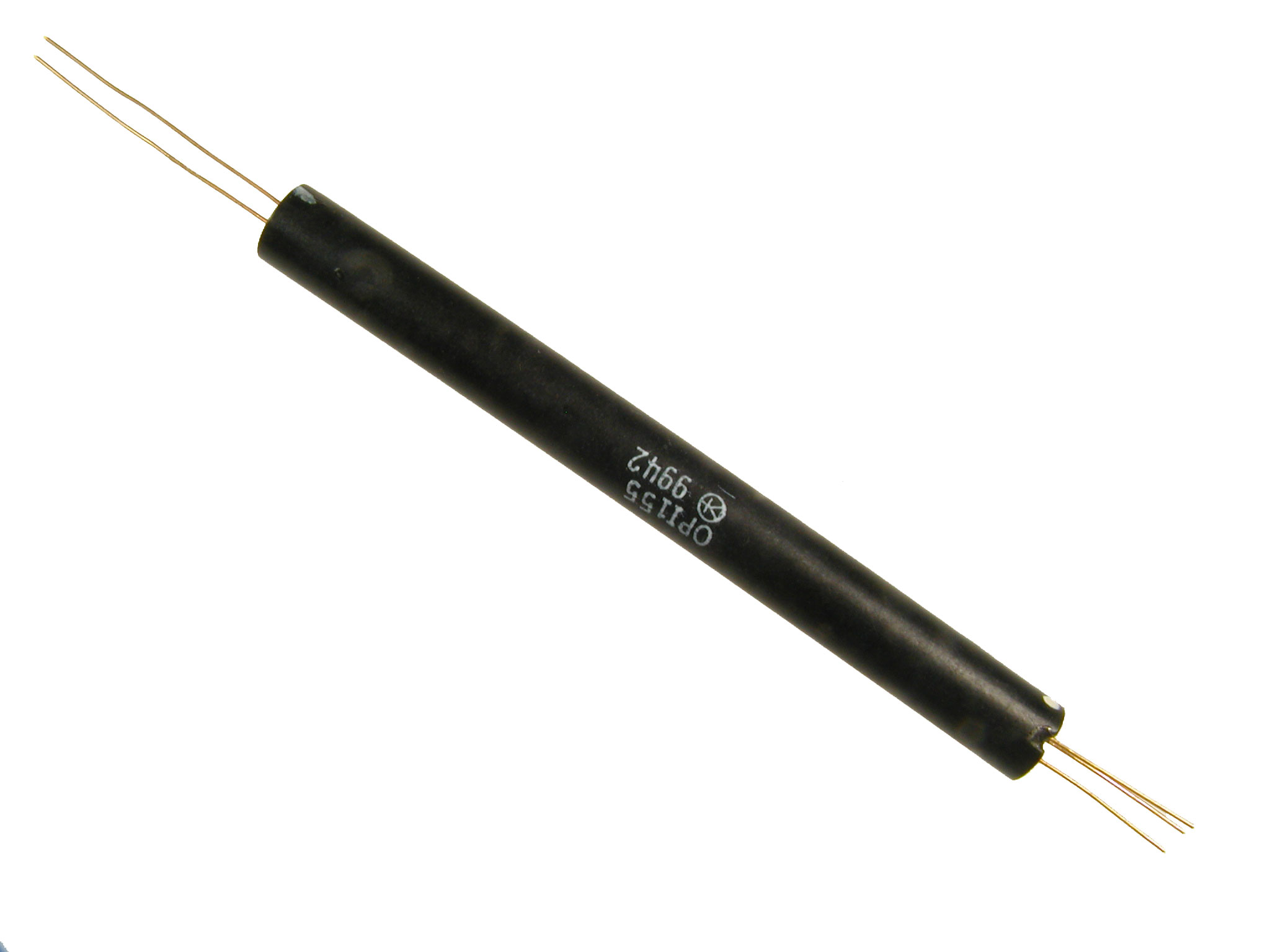

OPI155
Optoisolator
Lifecycle:
Active (Mature)
Brand:
Optek Technology
50kV electrical isolation
Choice of phototransistor or photodarlington output
High speed >5MBd (OPI155)
Hermetically sealed LED and photosensor
Base contact lead for conventional transistor biasing
TX and TXV process available
Specifications
| Applications |
|
|---|---|
| Package | Axial-Cylindrical |
| High Reliability | False |
| Screening Level | - |
| Hall Effect | No |
| Photologic | False |
| Lead Length Min / Max | 0.5" |
| RoHs Compliance | Y |
| Isolation Voltage | 50kV |
|---|---|
| Sensor Type | Photologic-TIA-OC |
| CTR Min | - |
| Operating Temperature | -40°C ~ 85°C |
| Wavelength | 850nm |
| Rise / Fall | - |
| Prop Delay | 100ns / 150ns (Max)ns |
| VCE Max | 18V |
| VCC Range | 4.5 / 5.5V |
| IF Typ/Max | 10 / 50.0mA |
| CTR Max | - |
| Light Current IC(ON) Min | - |
| Alternative Part Number | - |
|---|
