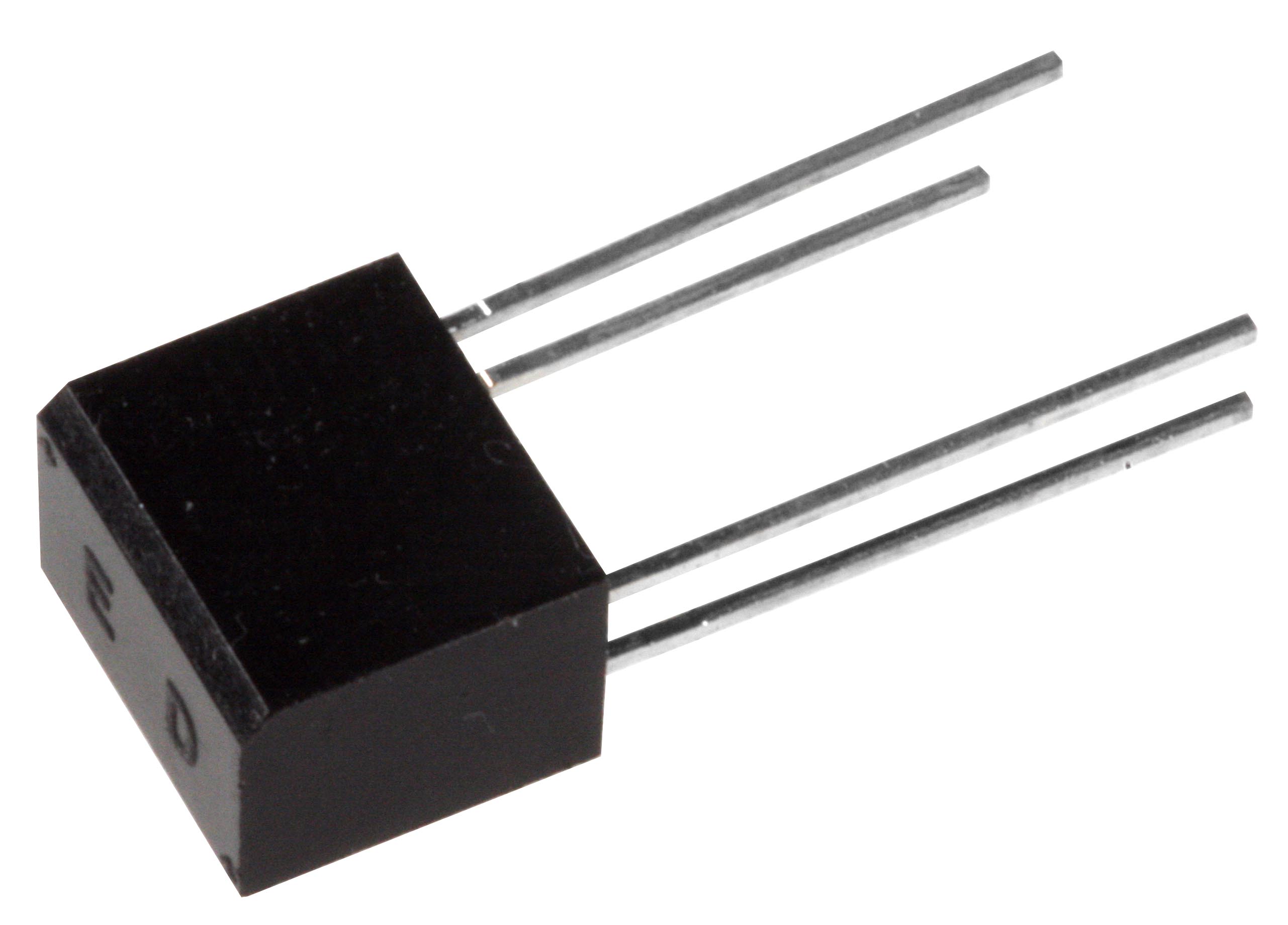

OPI7010
Optoisolator
Lifecycle:
Active (Mature)
Brand:
Optek Technology
± 6kV dc electrical isolation
Inexpensive plastic housing
Choice of phototransistor or photodarlington output
UL registered File No. E58730
Specifications
| Applications |
|
|---|---|
| Package | 4-DIP |
| High Reliability | False |
| Screening Level | - |
| Hall Effect | No |
| Photologic | False |
| Lead Length Min / Max | 0.3" |
| RoHs Compliance | Y |
| Isolation Voltage | 6kV |
|---|---|
| Sensor Type | Phototransistor |
| CTR Min | 100% @ 10mA |
| Operating Temperature | -40°C ~ 85°C |
| Wavelength | 890nm |
| Rise / Fall | -ns |
| Prop Delay | - |
| VCE Max | 30V |
| VCC Range | - |
| IF Typ/Max | - |
| CTR Max | - |
| Light Current IC(ON) Min | - |
| Alternative Part Number | - |
|---|
