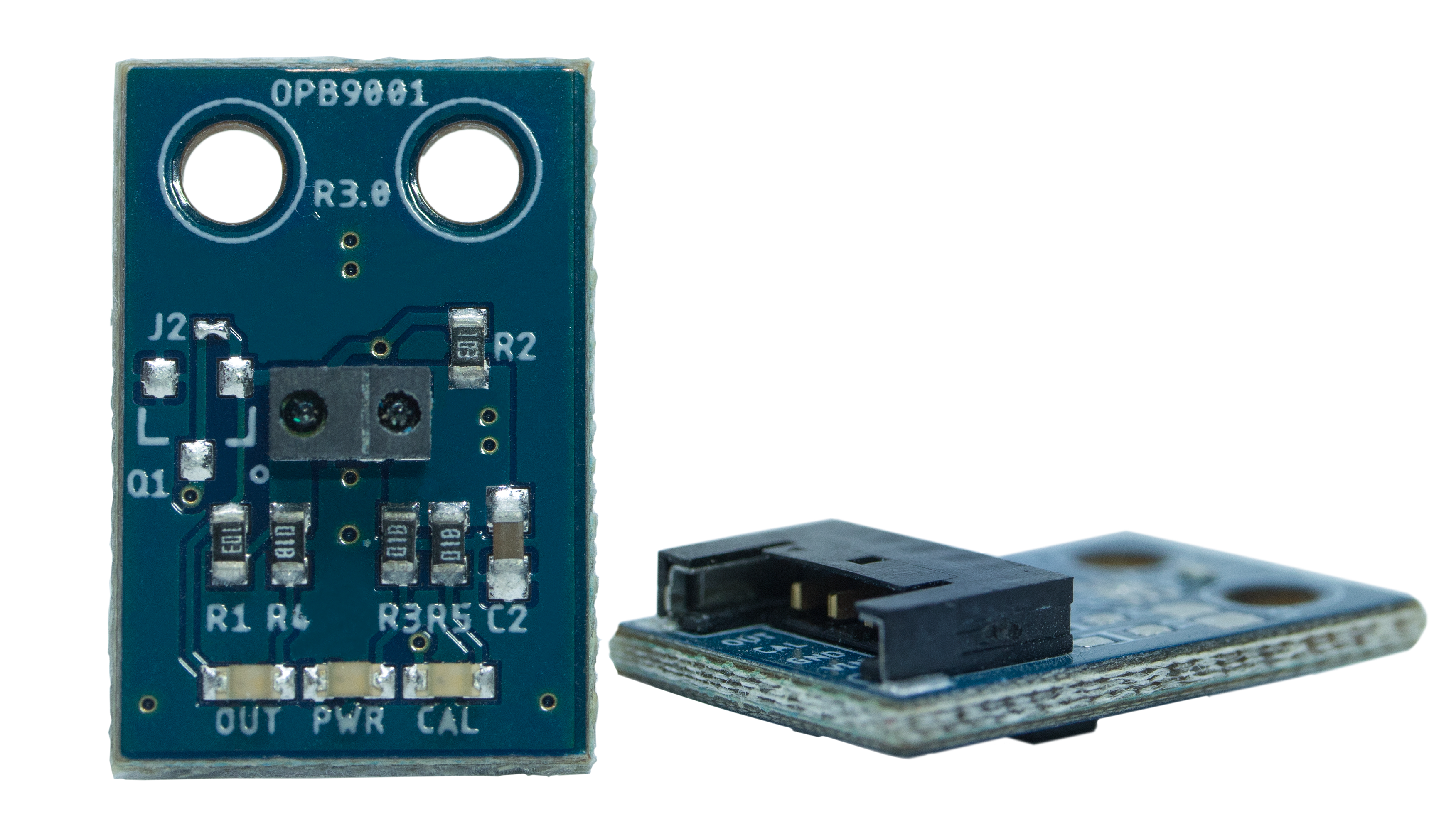

OPB9001C
OBSOLETE Ref Optical Sensor Module 3.3-5.5V
Lifecycle:
Not Recommended for New Designs
Brand:
Optek Technology
Wide operating supply voltage range up to 4.5 V - 30 V
Detecting distance 2.5mm to 50mm
Ambient light rejection 25k+ lux
Programmable output configuration and sensitivity level
Integrated 4-pin connector
-40ÂC to +85ÂC operating temperature range
Small dimensions L 18mm X W 12mm X H 5mm
Specifications
| Applications |
|
|---|---|
| Package Termination | PCB Assembly |
| High Reliability | No |
| Screening Level | - |
| Hall Effect | No |
| Photologic | No |
| Photo Detector Type | - |
| Material | FR4 |
| Color | - |
| Lead Length Min | - |
| Lead Length Max | - |
| Receiver Type | - |
| Responsivity Min/Max/Typ | - |
| RoHs Compliance | Y |
| Output Type | NPN - Open Collector |
|---|---|
| Test Distance | 6mm |
| Operating Temperature | -40°C ~ 85°C |
| Focused / Non-Focused | Non-Focused |
| Endlooker / Sidelooker | Endlooker |
| Wavelength | 850nm |
| Rise Time Typ | - |
| Reverse Voltage | 30T |
| Peak Response Wavelength | - |
| Spectral Response Wavelength | - |
| Hysteresis Min (Gauss) | - |
| Hysteresis Max (Gauss) | - |
| Hysteresis Typ (Gauss) | - |
| VCE Max | 4.5 / 24V |
| VCC Range | - |
| IF Typ/Max | - |
| Isolation Voltage Min | - |
| Light Current IC(ON) Min | - |
| Light Current IC(ON) Max | - |
| Input/Output Power | - |
| ICCL/ICCH | 16mA |
| Supply Voltage | 3.3V ~ 5.5V |
