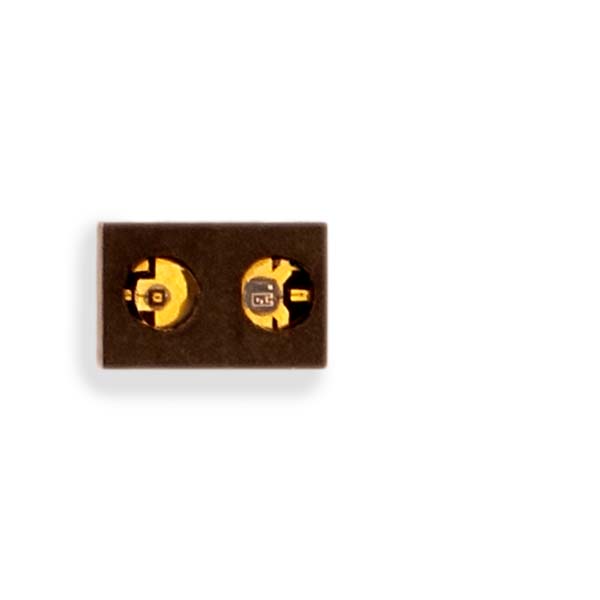

OPR5005TR
Hybrid, Reflective, LED + PTX, 850nm
Lifecycle:
Active (Mature)
Brand:
Optek Technology
High temperature operation
Surface mountable
Compact size
Excellent ambient light protection
Specifications
| Applications |
|
|---|---|
| Package Termination | Surface Mount Chip Carrier |
| High Reliability | No |
| Screening Level | - |
| Hall Effect | - |
| Photologic | Surface mount, chip carrier |
| Photo Detector Type | Optek Technology |
| Material | - |
| Color | - |
| Lead Length Min | - |
| Lead Length Max | - |
| Receiver Type | Y |
| Responsivity Min/Max/Typ | 890mV |
| RoHs Compliance | - |
| Output Type | Phototransistor |
|---|---|
| Test Distance | 0.05" to 0.20" |
| Operating Temperature | -55°C ~ 125°C |
| Focused / Non-Focused | Non-Focused |
| Endlooker / Sidelooker | Endlooker |
| Wavelength | 890nm |
| Rise Time Typ | - |
| Reverse Voltage | - |
| Peak Response Wavelength | - |
| Spectral Response Wavelength | - |
| Hysteresis Min (Gauss) | 30G |
| Hysteresis Max (Gauss) | - |
| Hysteresis Typ (Gauss) | 20 / 50G |
| VCE Max | 30V |
| VCC Range | - |
| IF Typ/Max | - |
| Isolation Voltage Min | 0.1kV |
| Light Current IC(ON) Min | - |
| Light Current IC(ON) Max | - |
| Input/Output Power | - |
| ICCL/ICCH | - |
| Supply Voltage | 3 - 24V |
