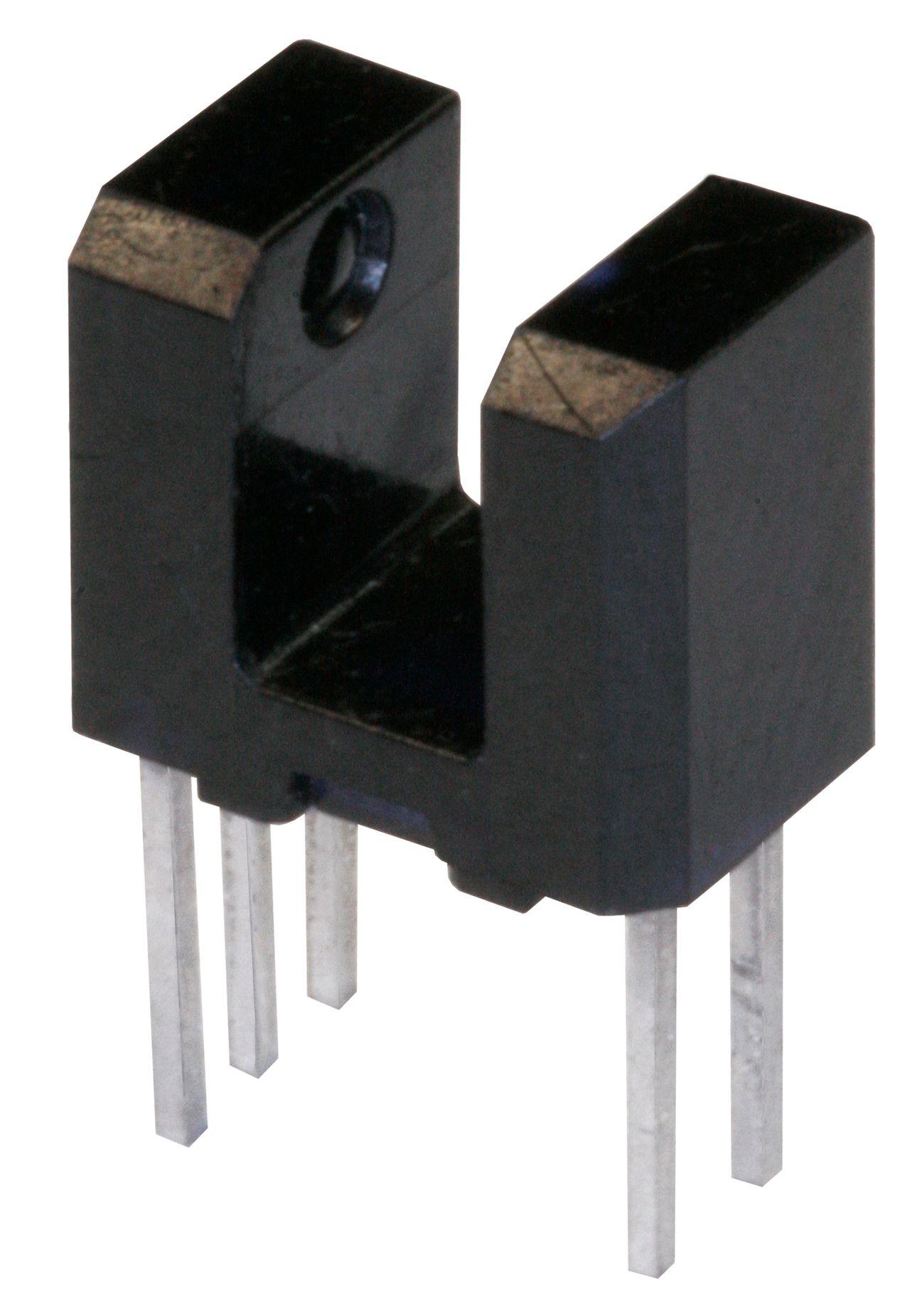

OPB620
Slotted Switch, N Package
Lifecycle:
Active (Mature)
Brand:
Optek Technology
Non-contact switching
Printed circuit board mounting
Enhanced signal to noise ratio
PIN photodiode sensor for high speed (OPB611, OPB621)
Lead centers: 0.275: (OPB61x) / 0.320” (OPB62x)
Specifications
| Applications |
|
|---|---|
| Package Termination | Through-Hole |
| Slot Width | 0.19" |
| Slot Depth | 0.285" |
| Aperture Width Emitter / Sensor | 0.06 / 0.06" |
| High Reliability | No |
| Screening Level | - |
| Hall Effect | No |
| Photologic | No |
| Photo Interrupter Type | Slotted |
| Package | Switch, slotted LNPT |
| Lead Length Min | 0.1" |
| Lead Length Max | 0.1" |
| RoHs Compliance | Y |
| Output Type | Rbe Phototransistor |
|---|---|
| Supply Voltage | 3 ~ 22V |
| Operating Temperature | -40°C ~ 100°C |
| Wavelength | 890nm |
| VCE Max | 24V |
| VCC Range | - |
| Angle | - |
| IF Typ/Max | 20 / 50mA |
| Light Current IC(ON) Min | 1mA |
| Light Current IC(ON) Max | - |
| ICCL/ICCH | - |
| Alternative Part Number | - |
|---|
