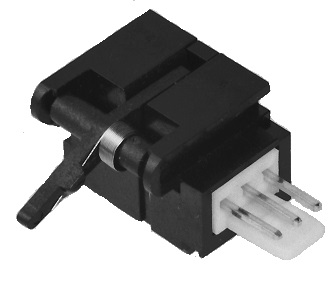

OPB695AZ
Flag Switch
Lifecycle:
Active (Mature)
Brand:
Optek Technology
Photologic® output
Four output options
Mechanical switch replacement
Printed circuit board mounting (OPB685-3)
2.5mm, 3-pin connector mates with Molex connector 5051 series housing and 4809 series terminal for OPB695 Series
Specifications
| Applications |
|
|---|---|
| Package Termination | Wires |
| Slot Width | - |
| Slot Depth | - |
| Aperture Width Emitter / Sensor | - |
| High Reliability | No |
| Screening Level | - |
| Hall Effect | No |
| Photologic | Yes |
| Photo Interrupter Type | Flag |
| Package | Flag |
| Lead Length Min | 0.1" |
| Lead Length Max | 0.1" |
| RoHs Compliance | Y |
| Output Type | Photologic |
|---|---|
| Supply Voltage | 4.5 ~ 8V |
| Operating Temperature | -40°C ~ 100°C |
| Wavelength | 890nm |
| VCE Max | - |
| VCC Range | 4.5 / 16V |
| Angle | 59° |
| IF Typ/Max | - |
| Light Current IC(ON) Min | - |
| Light Current IC(ON) Max | - |
| ICCL/ICCH | - |
| Alternative Part Number | - |
|---|
