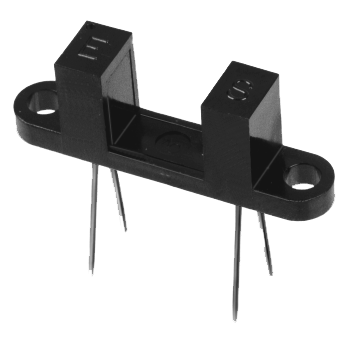

OPB801L55
Slotted Switch, T Package
Lifecycle:
Active (Mature)
Brand:
Optek Technology
0.375" (9.525mm) wide gap
Choice of aperture size
Choice of minimum photocurrent
Choice of opaque or IR transmissive shells
Available for PCBoard mounting or with 24" 26 AWG wires
Specifications
| Applications |
|
|---|---|
| Package Termination | Through-Hole |
| Slot Width | 0.375" |
| Slot Depth | 0.35" |
| Aperture Width Emitter / Sensor | 0.05 / 0.05" |
| High Reliability | No |
| Screening Level | - |
| Hall Effect | No |
| Photologic | No |
| Photo Interrupter Type | Slotted |
| Package | Switch, slotted LNPT |
| Lead Length Min | 0.425" |
| Lead Length Max | 0.425" |
| RoHs Compliance | Y |
| Output Type | Phototransistor |
|---|---|
| Supply Voltage | 3 ~ 24V |
| Operating Temperature | -40°C ~ 85°C |
| Wavelength | 890nm |
| VCE Max | 30V |
| VCC Range | - |
| Angle | - |
| IF Typ/Max | 20 / 50mA |
| Light Current IC(ON) Min | 1.25mA |
| Light Current IC(ON) Max | - |
| ICCL/ICCH | - |
| Alternative Part Number | - |
|---|
