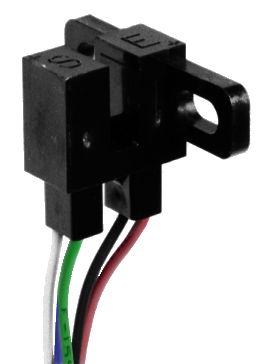

OPB941W55Z
Slotted Switch, T Package
Lifecycle:
Active (Mature)
Brand:
Optek Technology
Choice of aperture size
Choice of output configurations
Choice of opaque or IR transmissive shell
Choice of pins (L) or wires (W)
0.125" (3.18mm) slot width
0.320" (8.128mm) lead spacing for PCBoard (side mounting)
Data rates to 250kBaud
Specifications
| Applications |
|
|---|---|
| Package Termination | Wires |
| Slot Width | 0.125" |
| Slot Depth | 0.315" |
| Aperture Width Emitter / Sensor | 0.05 / 0.05" |
| High Reliability | No |
| Screening Level | - |
| Hall Effect | No |
| Photologic | Yes |
| Photo Interrupter Type | Slotted |
| Package | Switch, slotted LNPT |
| Lead Length Min | - |
| Lead Length Max | - |
| RoHs Compliance | Y |
| Output Type | Photologic |
|---|---|
| Supply Voltage | 4.75 ~ 5.25V |
| Operating Temperature | -40°C ~ 70°C |
| Wavelength | 880nm |
| VCE Max | - |
| VCC Range | 4.75 / 5.25V |
| Angle | - |
| IF Typ/Max | 20 / 50mA |
| Light Current IC(ON) Min | - |
| Light Current IC(ON) Max | - |
| ICCL/ICCH | 15 / 15mA |
| Alternative Part Number | - |
|---|
